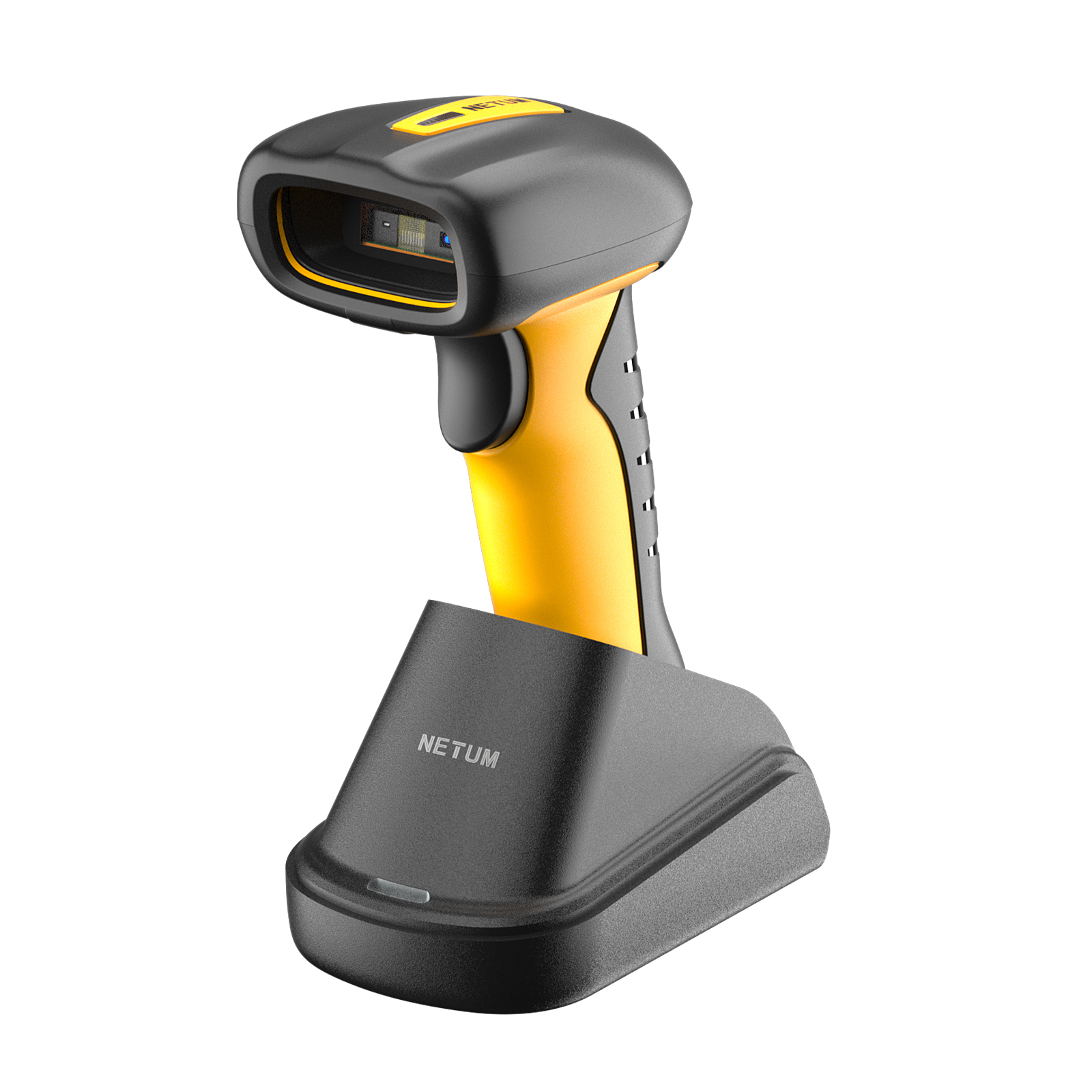

NETUM RD-1203L Wireless Rugged Long range Barcode Scanner
£397.00
The NETUM RD-1203L is a rugged handheld 2D barcode scanner designed for industrial, warehouse, logistics and retail applications where reliable long-range wireless scanning is essential. It combines Bluetooth and 2.4GHz wireless connectivity with a charging cradle, providing flexible cordless operation for a wide range of data capture tasks.
Its high-resolution 2688 × 1520 CMOS imaging sensor accurately reads both 1D and 2D barcodes, including QR Code, Data Matrix, PDF417, Code 128, UPC/EAN and many other commonly used symbologies. The advanced imaging engine delivers a reading precision down to 3 mil for 1D codes and 5 mil for 2D codes, with scan distances reaching up to 1.8 metres for standard UPC barcodes.
The integrated 2600mAh rechargeable battery provides extended cordless operation, while Bluetooth offers wireless communication up to 10 metres and the 2.4GHz wireless mode extends this to 100 metres in open environments. Multiple scan modes, including trigger, continuous and auto-sense operation, make the scanner suitable for a variety of workflows.
Designed for demanding environments, the RD-1203L features an IP67-rated enclosure, 7-metre drop resistance, and operates in temperatures from -30°C to +60°C, making it an excellent choice for harsh industrial and outdoor applications.
Description
NETUM RD-1203L Long Range Wireless 2D Barcode Scanner
The NETUM RD-1203L is a professional-grade handheld 2D barcode scanner designed for demanding industrial, warehouse, logistics and retail environments. Combining high-resolution imaging with long-range wireless communication, it delivers reliable barcode capture while providing operators with the freedom to work away from a host computer.
Featuring a high-performance 2688 × 1520 CMOS imaging sensor, the RD-1203L reads both 1D and 2D barcodes quickly and accurately, even when labels are small or challenging to scan. The scanner supports a wide range of industry-standard symbologies including QR Code, Data Matrix, PDF417, Code 128, Code 39, UPC, EAN and many others, making it suitable for virtually any barcode-based application.

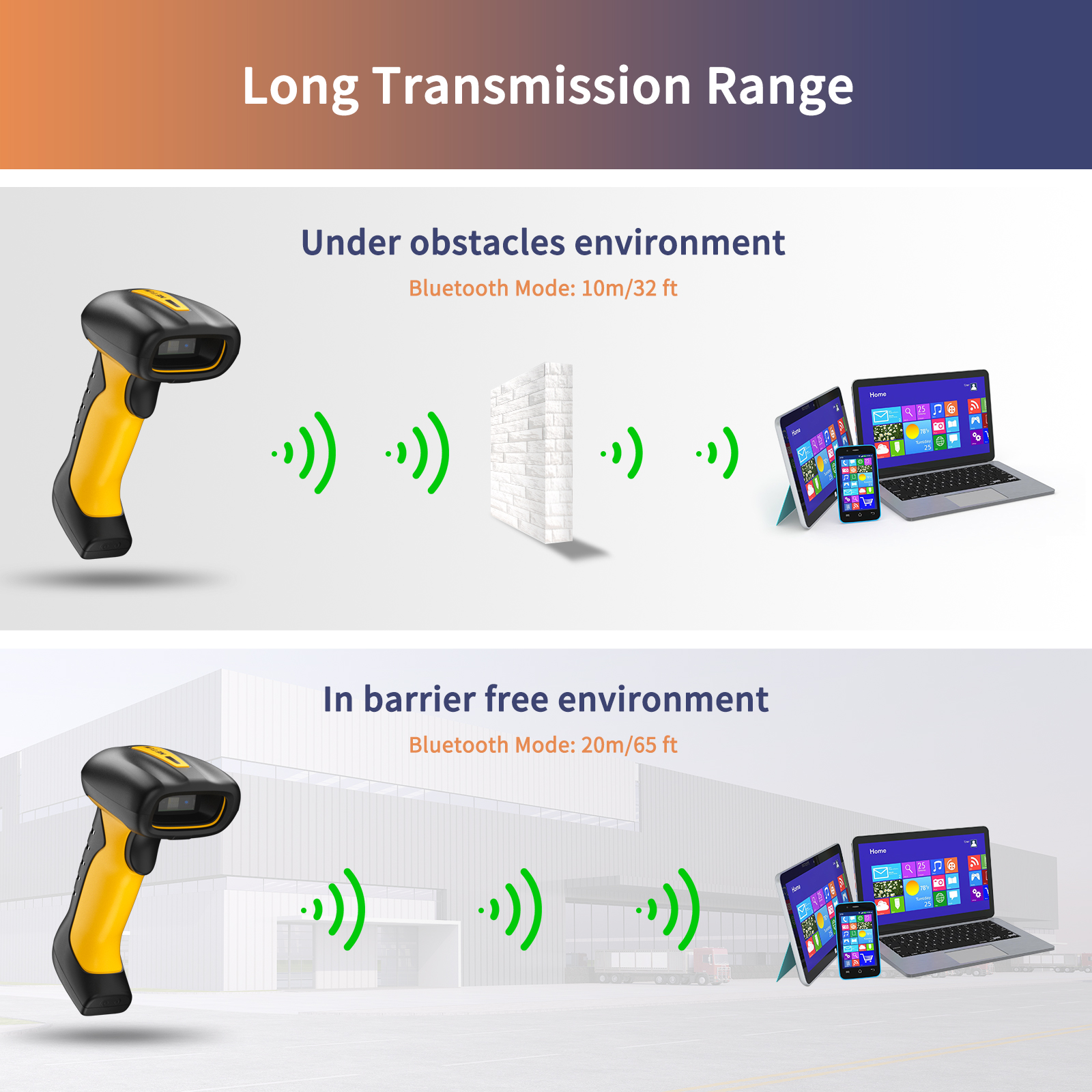

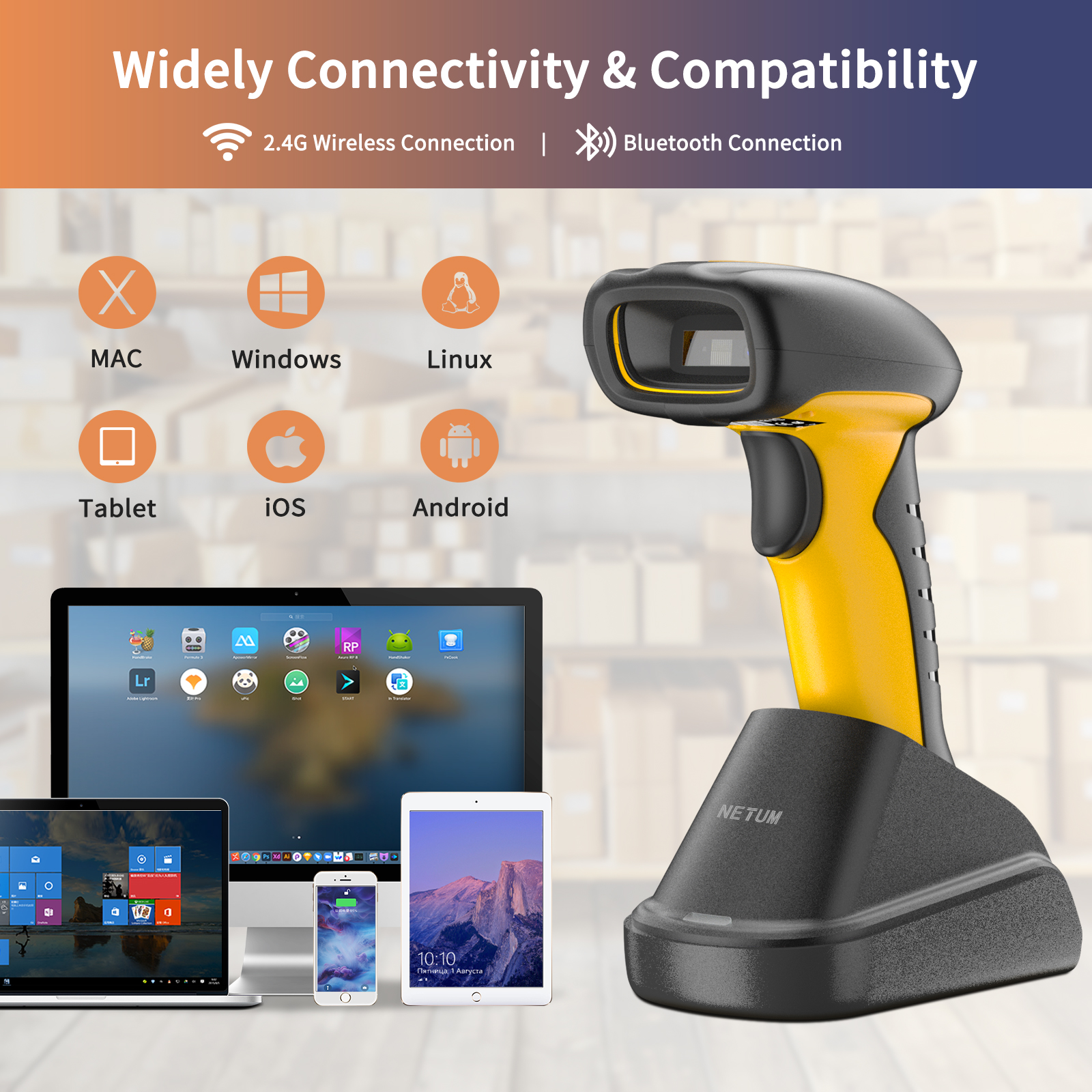

Long Distance Wireless Connectivity

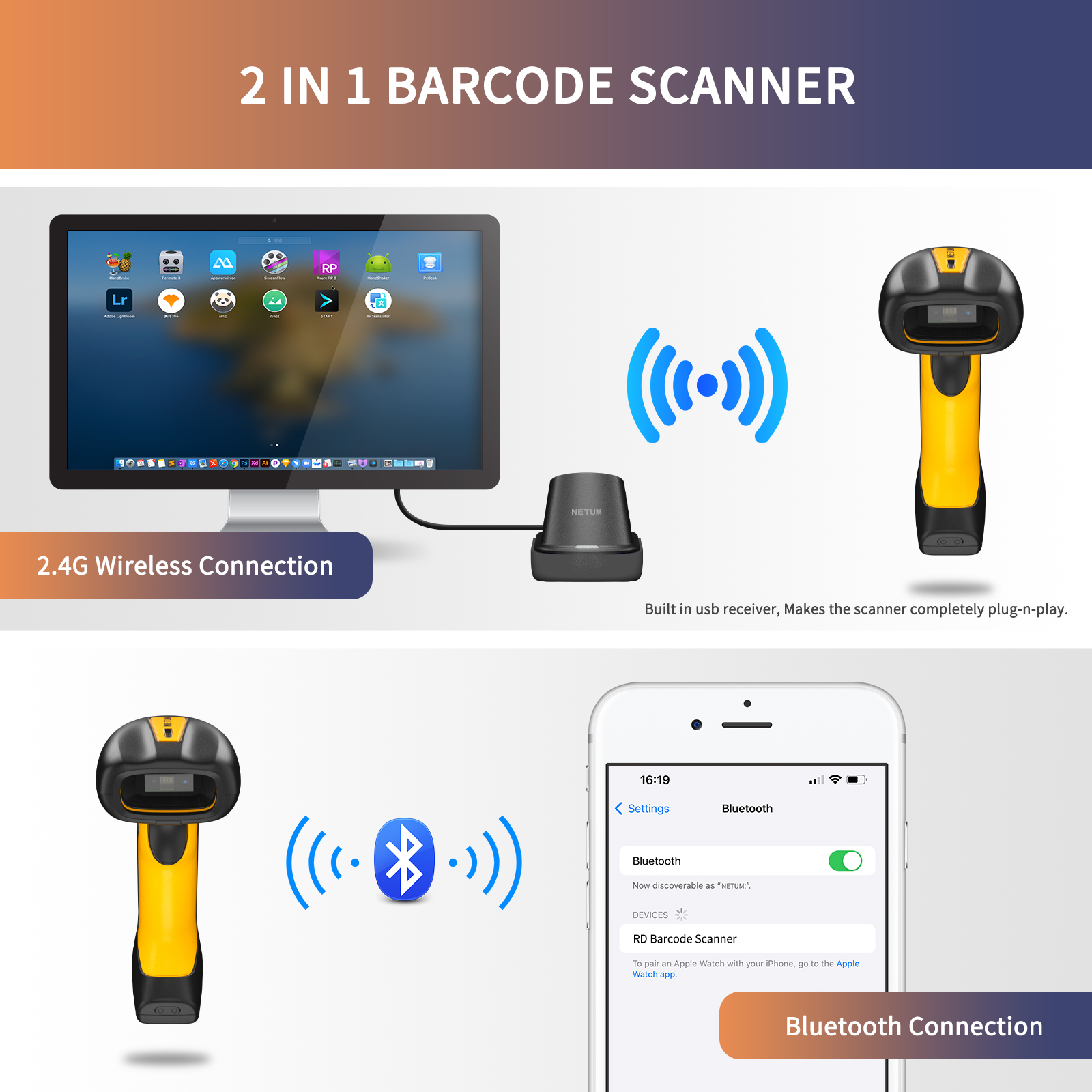

The RD-1203L supports two wireless communication methods:
- 2.4GHz wireless with an operating range of up to 100 metres in open environments.
- Bluetooth® connectivity with an operating range of up to 10 metres.

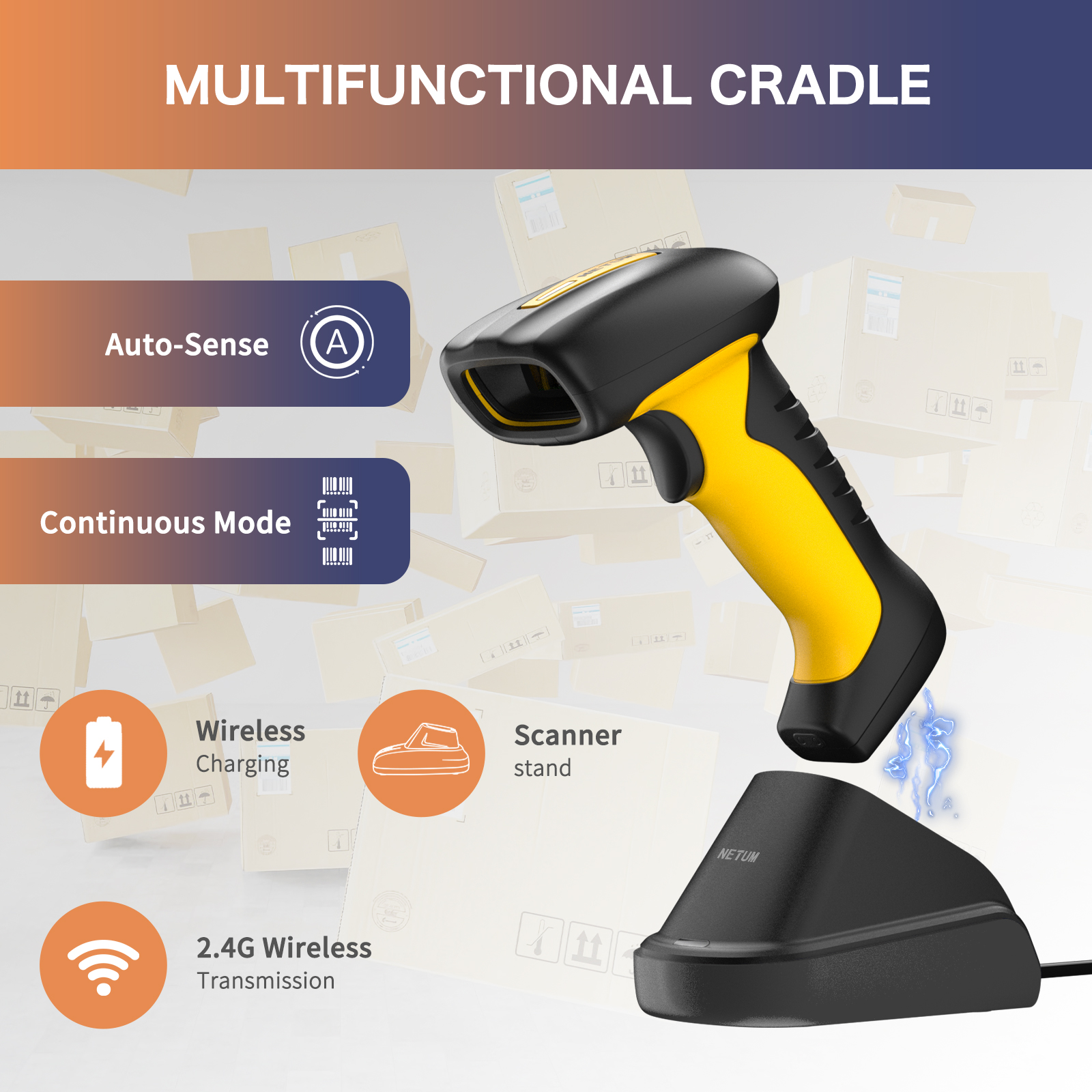

The supplied charging cradle provides a convenient base station for charging and wireless communication, allowing the scanner to be deployed throughout warehouses, production facilities and distribution centres while maintaining reliable connectivity.

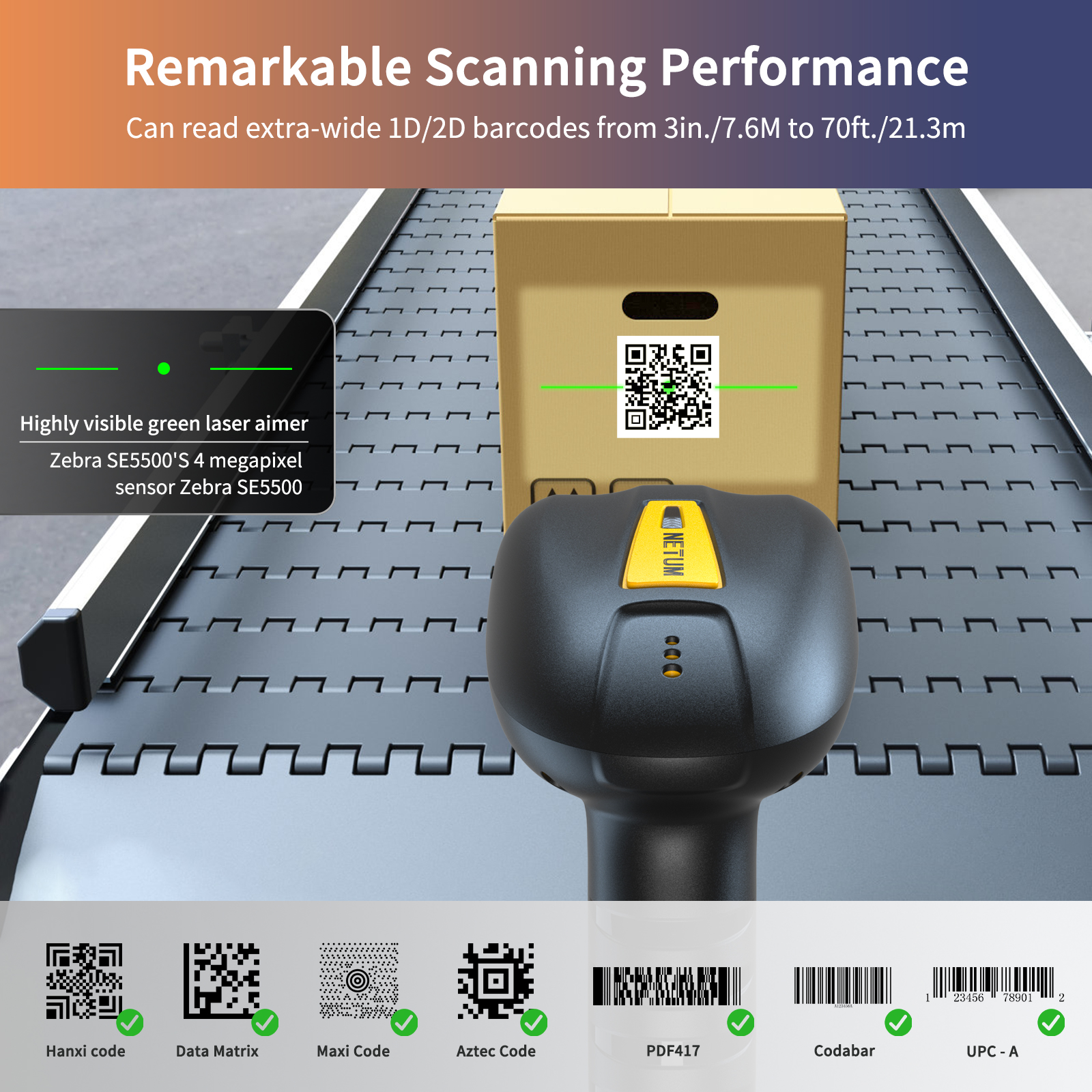

Excellent Scanning Performance
Designed for demanding barcode reading applications, the RD-1203L offers:
- 2688 × 1520 high-resolution CMOS imaging
- Green 520nm laser aimer
- Dual warm-white LED illumination
- Minimum resolution of 3 mil for 1D codes
- Minimum resolution of 5 mil for 2D codes
- Minimum print contrast of 30%
Its wide field of view together with generous scan angle tolerance enables fast barcode acquisition from a variety of orientations without requiring precise alignment.
Wide Barcode Compatibility
The scanner supports an extensive range of barcode formats including:
2D Codes
- QR Code
- Micro QR
- PDF417
- Data Matrix (ECC200 and related formats)
- Chinese Sensible Code
1D Codes
- Code 128
- Code 39
- Code 93
- Codabar
- Code 11
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- ISBN / ISSN
- Interleaved 2 of 5
- ITF
- Industrial 2 of 5
- Standard 2 of 5
- Matrix 2 of 5
- UCC/EAN-128
- AIM128
This broad compatibility makes the RD-1203L suitable for retail, logistics, manufacturing, healthcare and inventory management applications.
Multiple Scan Modes
The scanner supports several operating modes to suit different workflows:
- Trigger mode
- Continuous scanning mode
- Auto-sensing mode
User feedback is provided through a combination of:
- Audible buzzer
- LED status indicator
- Vibration notification
These options allow the scanner to be configured for both handheld and repetitive scanning applications.
Rugged Industrial Design
Built for demanding environments, the RD-1203L offers excellent durability with:
- IP67 environmental protection
- 7 metre drop resistance
- Operating temperature from -30°C to +60°C
- Storage temperature from -30°C to +70°C
- Operation in humidity up to 95% RH (non-condensing)
Its yellow and black industrial housing provides high visibility while remaining suitable for everyday warehouse use.
Battery Performance

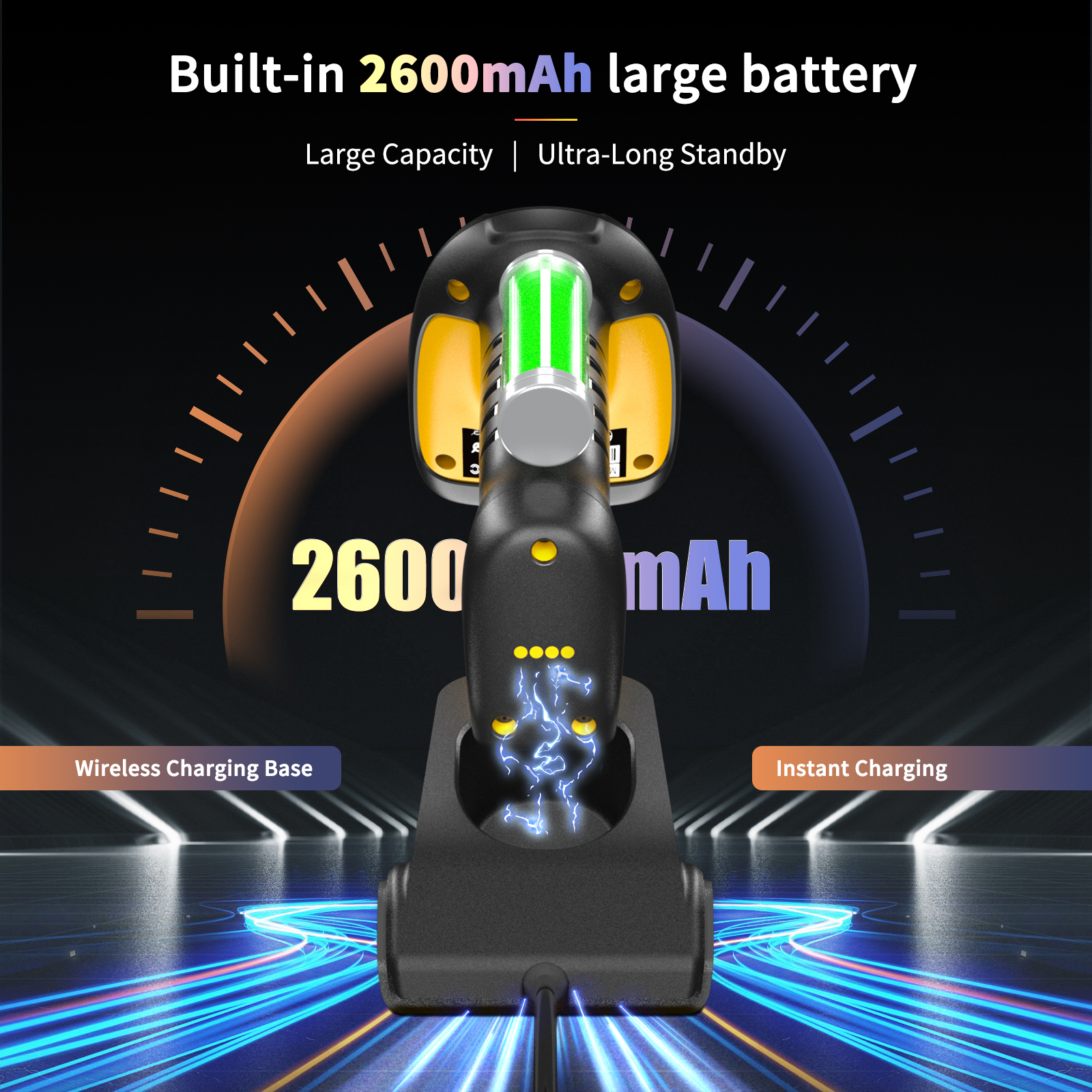

The RD-1203L incorporates a 2600mAh rechargeable battery providing extended cordless operation. The battery can be fully recharged in approximately 4–6 hours using the supplied charging cradle.
Physical Characteristics
- Scanner dimensions: 100 × 70 × 170mm
- Charging cradle dimensions: 165 × 110 × 85mm
- Cable length: 1.2m
- Colour: Yellow and Black
The ergonomic handheld design provides comfortable operation during extended scanning sessions.
Typical Applications
The RD-1203L is well suited to applications including:
- Warehouse management
- Inventory control
- Distribution centres
- Goods receiving
- Shipping and dispatch
- Manufacturing
- Retail stock management
- Asset tracking
- Logistics operations
- Industrial automation
Certifications
The scanner is supplied with CE, FCC and RoHS compliance certifications for deployment across a wide range of commercial and industrial environments.
Need Help Choosing?
Tell us what type of barcodes you need to scan, the device you want to connect to and the environment in which the scanner will be used. Ovlanta can help you select the most suitable barcode scanning solution for your application.
Specifications
Optical Performance
Scanner type: Portable handheld 2D Bluetooth barcode scanner with cradle
Scanning technology: CMOS area imager
Image sensor: 2688 × 1520 pixels
Barcode capability: 1D and 2D
Illumination: 2 × Warm White LEDs
Aiming light: Green 520nm laser
Minimum 1D resolution: 3 mil or greater
Minimum 2D resolution: 5 mil or greater
Minimum print contrast: 30% or greater
Connectivity
Connection options:
- Bluetooth
- 2.4GHz wireless
Maximum Bluetooth range: Up to 10m line of sight
Maximum 2.4GHz wireless range: Up to 100m line of sight
Charging interface: USB Type-B / USB Type-A
Optional interface: RS-232
Cable length: Approximately 1.2m
Battery and Power
Battery capacity: 2600mAh
Approximate charging time: 4–6 hours
Working voltage: 3.3V–4.2V ±5%
Maximum operating current: 480mA
Environmental Specifications
Operating temperature: -30°C to +60°C
Storage temperature: -30°C to +70°C
Operating humidity: Up to 95% RH (non-condensing)
Maximum ambient illumination: 107,639 lux
Physical Specifications
Scanner dimensions: 100 × 70 × 170mm
Cradle dimensions: 165 × 110 × 85mm
Colour: Yellow and Black
Ingress protection: IP67
Drop resistance: Survives free fall from up to 7 metres
Compliance: CE, FCC and RoHS
User Feedback
- Audible buzzer
- LED status indicator
- Vibration feedback
Scanning Modes
- Manual trigger mode
- Continuous scanning mode
- Auto-sense mode
Supported 2D Barcodes
PDF417, QR Code (including Micro QR), Data Matrix (ECC200, ECC000, ECC050, ECC080, ECC100, ECC140), Chinese Sensible Code and other standard 2D symbologies.
Supported 1D Barcodes
Code 128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN, ISSN, UPC-A, UPC-E, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Code 39, Codabar, Code 93, Code 11 and other common linear symbologies.
Typical Scanning Distances
Code 39 (3 mil): 69–411mm
Code 39 (5 mil): 64–676mm
PDF417 (5 mil): 71–498mm
PDF417 (6.7 mil): 66–650mm
Data Matrix (10 mil): 56–688mm
UPC (13 mil): 64–1800mm
Code 128 (15 mil): 182–1829mm
Actual scanning distance may vary depending on barcode size, print quality, contrast and surrounding lighting conditions.
Downloads
Product Downloads
Access the latest product information, setup instructions and configuration documents for the NETUM RD-1203L IP67 Long Range barcode scanner.
NETUM RD-1203L Product Information
Technical details and product specifications for the NETUM RD-1203L IP67 portable long range barcode scanner.
FAQs
Frequently Asked Questions (FAQ)
What types of barcodes can the RD-1203L scan?
The RD-1203L supports both 1D and 2D barcode symbologies, including popular formats such as QR Code, PDF417, Data Matrix, Code 128, Code 39, EAN-13, UPC-A/E, Codabar, ISBN/ISSN, Interleaved 2 of 5 and many others.
How far can the scanner communicate wirelessly?
The scanner supports two wireless connection methods:
- Bluetooth: Up to 10 metres in open line-of-sight conditions.
- 2.4GHz Wireless: Up to 100 metres in open line-of-sight conditions when used with the supplied cradle/receiver.
Does the scanner support Bluetooth?
Yes. The RD-1203L features integrated Bluetooth connectivity for wireless operation with compatible PCs, tablets and mobile devices. It also supports a dedicated 2.4GHz wireless connection for extended operating range.
What scanning technology does the scanner use?
The scanner uses a high-performance CMOS imaging sensor with a resolution of 2688 × 1520 pixels, providing fast and reliable decoding of both printed and on-screen barcodes.
What is the minimum barcode resolution it can read?
The RD-1203L can decode:
- 1D barcodes: 3 mil minimum
- 2D barcodes: 5 mil minimum
with a minimum print contrast of 30%.
What scan modes are available?
The scanner offers several operating modes, including:
- Trigger Mode
- Continuous Scan Mode
- Auto Sense Mode
allowing the scanner to be configured for different applications and workflows.
How long does the battery last?
The RD-1203L is fitted with a 2600mAh rechargeable battery, providing all-day operation under typical usage. Charging takes approximately 4–6 hours.
Is the scanner suitable for industrial environments?
Yes. The scanner is designed for demanding environments and features:
- IP67 environmental protection
- 7 metre drop resistance
- Operating temperature from -30°C to +60°C
What charging interface does the scanner use?
The standard charging interface supports USB(B) and USB(A), with an optional RS-232 interface available for selected installations.
Does the scanner provide user feedback after a successful scan?
Yes. The scanner confirms successful reads using multiple feedback methods:
- Audible buzzer
- LED indicator
- Vibration
This makes it suitable for noisy or low-visibility environments.
What are the scanner dimensions?
- Scanner: 100 × 70 × 170 mm
- Charging cradle: 165 × 110 × 85 mm
The scanner is finished in a durable yellow and black housing for improved visibility in industrial environments.
What operating environments is the scanner designed for?
The RD-1203L operates in temperatures from -30°C to +60°C and can withstand humidity levels up to 95% RH (non-condensing). It also performs in ambient light levels up to 107,639 lux, making it suitable for both indoor and outdoor applications.
Does the scanner support long-distance barcode reading?
Yes. Thanks to its high-resolution imaging engine, the RD-1203L can read larger barcodes at distances of up to approximately 1.8 metres, depending on barcode type, size and print quality.
Is the scanner certified?
Yes. The RD-1203L complies with major international standards, including CE, FCC and RoHS.
