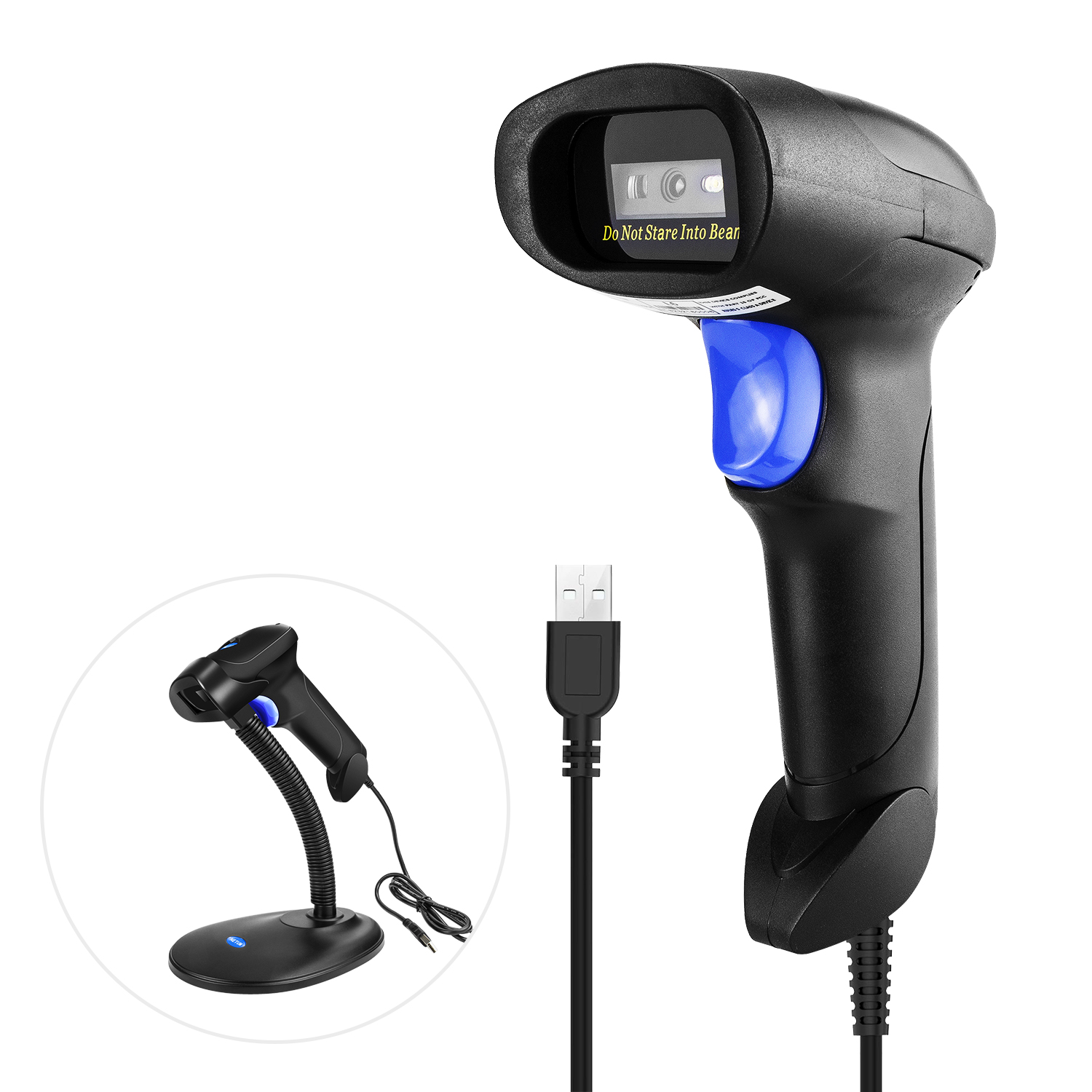

NETUM L5 Wired USB 1D and 2D Barcode Scanner
£16.00
The NETUM L5 is a high-performance wired 1D and 2D barcode scanner designed for fast, reliable data capture in retail, warehousing, logistics, banking, postal services and industrial manufacturing environments. Its ergonomic design provides comfortable operation, while its robust construction offers excellent resistance to knocks and everyday commercial use.
Using advanced CMOS imaging technology, the scanner quickly reads a wide range of 1D and 2D barcode symbologies, including QR Code, Data Matrix, PDF417, UPC/EAN, Code 39 and Code 128. USB and RS-232 interfaces provide straightforward integration with POS terminals, PCs and industrial systems, making it suitable for a wide variety of scanning applications.
A 0.35 megapixel imaging engine, wide scanning angles and durable commercial construction ensure dependable performance in demanding environments. Operating from a standard 5V DC supply and certified to CE, FCC and RoHS standards, the L5 provides a reliable, cost-effective barcode scanning solution for everyday business operations.
Description
NETUM L5 Wired 1D and 2D Barcode Scanner
The NETUM L5 is a high-performance wired 1D and 2D barcode scanner designed for retail, warehousing, logistics, manufacturing and commercial point-of-sale applications. Its ergonomic handheld design combines reliable barcode reading with fast decoding performance, making it suitable for demanding day-to-day scanning tasks.
Using advanced CMOS imaging technology, the scanner quickly captures both 1D and 2D barcodes, including QR Codes, Data Matrix and PDF417 symbols. It is designed to provide rapid and accurate scanning across a wide range of barcode types commonly used in commercial and industrial environments.
Fast and Accurate Barcode Reading
The L5 is capable of decoding an extensive range of industry-standard barcode symbologies, including:
- EAN and UPC
- Code 39
- Code 93
- Code 128
- Codabar
- Interleaved 2 of 5
- MSI
- PDF417
- MicroPDF417
- QR Code
- Data Matrix (ECC200)
- MaxiCode
- Postal barcode formats
Its CMOS imaging engine offers fast recognition of both traditional linear barcodes and modern two-dimensional codes, making it suitable for mixed barcode environments.
Flexible Interface Options
The scanner supports both USB and RS-232 interfaces, allowing straightforward integration with a wide variety of systems including:
- Desktop PCs
- POS terminals
- Industrial equipment
- Legacy serial systems
USB compatibility includes support for standard USB connections as well as IBM SurePOS and Macintosh systems.
Designed for Everyday Commercial Use
The L5 has been developed for continuous operation within busy working environments. Its ergonomic shape is designed for comfortable operation throughout the working day, while the rugged housing helps protect the scanner from accidental knocks and everyday handling.
Typical applications include:
- Retail point of sale
- Warehousing
- Distribution and logistics
- Manufacturing
- Banking
- Telecommunications
- Postal services
- Transport operations
Rugged Construction
Designed for commercial use, the scanner is built to withstand demanding environments. The manufacturer states that the unit is resistant to knocks and vibration and is capable of withstanding drops onto concrete during normal operation.
The scanner also complies with CE, FCC and RoHS requirements.
Imaging Performance
The integrated imaging engine features:
- 0.35 megapixel sensor
- 752 × 480 pixel resolution
- Bitmap, JPEG and TIFF image formats
- USB image transfer speeds up to 12 Mbps
- RS-232 communication up to 115 kbps
These specifications allow reliable barcode capture together with image transfer where supported by the host application.
Operating Environment
The L5 is suitable for operation in a wide range of commercial environments, with:
- Operating temperature: 0°C to +50°C
- Storage temperature: −40°C to +70°C
- Humidity: 5%–95% RH (non-condensing)
- Supply voltage: 5V DC ±10%
- Typical operating current: 350mA
Package Contents
Each scanner package includes:
- L5 barcode scanner
- USB/connection cable
- User guide
Need Help Choosing?
If you’re unsure whether the L5 is the right scanner for your application, tell us what barcode types you need to read, how the scanner will connect to your system, and the environment in which it will be used. Ovlanta can help you select the most suitable barcode scanning solution for your requirements.
Specifications
Scanning Performance
Scanner type: Portable handheld 2D barcode scanner
Scanning technology: CMOS area image sensor
Image sensor: 0.35 Megapixel (752 × 480 pixels)
Light source:
- Illumination: 528nm LED
- Aiming light: 630nm LED
Field of view: 34° Vertical × 46° Horizontal
Scanning angle:
- Roll: 360°
- Pitch: ±65°
- Yaw: ±60°
Minimum 1D resolution: 5 mil (Code 39)
Minimum print contrast: Greater than 25%
Connectivity
Connection options:
- USB
- RS-232
Supported USB modes:
- Standard USB
- IBM SurePOS
- Macintosh compatible
Image transfer speed:
- USB 1.1: Up to 12 Mbps
- RS-232: Up to 115 kbps
Typical image transfer time:
- Approximately 0.2 seconds for a compressed 100KB JPEG image
Electrical Specifications
Operating voltage: 5V DC ±10%
Current consumption: 350mA
Physical Specifications
Dimensions: 170 × 100 × 70mm
Weight: Approximately 235g
Drop resistance: Withstands repeated drops onto concrete
Compliance:
- CE
- FCC
- RoHS
Environmental Specifications
Operating temperature: 0°C to +50°C
Storage temperature: -40°C to +70°C
Operating humidity: 5% to 95% RH
Supported 2D Barcodes
- QR Code
- Data Matrix (ECC200)
- MaxiCode
- PDF417
- MicroPDF417
- Composite Codes
Supported 1D Barcodes
- UPC/EAN (including supplementals)
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- Code 128
- Code 128 Full ASCII
- UCC/EAN-128
- Code 93
- Codabar (NW-7)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- IATA
- Bookland EAN
- Code 32
- RSS Variants
Postal Codes Supported
- U.S. Post
- Planet
- UK Postal
- Japan Postal
- Australian Postal
- Dutch Postal
Typical Scanning Distances
| Barcode Type | Reading Distance |
|---|---|
| Code 39 (5 mil) | 90–120mm |
| PDF417 (10 mil) | 50–225mm |
| UPC/EAN (13 mil) | 30–305mm |
| Data Matrix (10 mil) | 52–240mm |
| Code 39 (20 mil) | 30–420mm |
Actual scanning performance may vary depending on barcode size, print quality, contrast, angle and ambient lighting conditions.
Imaging Characteristics
Image resolution: 752 × 480 pixels
Graphics formats:
- BMP
- JPEG
- TIFF
Package Contents
- NT-S5/L5 Barcode Scanner
- USB/RS232 Cable
- User Guide
Typical Applications
- Commercial POS systems
- Supermarkets
- Warehousing and logistics
- Banking
- Telecommunications
- Transportation
- Postal services
- Industrial manufacturing
- Production management
Downloads
Product Downloads
Access the latest product information, setup instructions and configuration documents for the NETUM L5 barcode scanner.
NETUM L5 Product Information
Technical details and product specifications for the NETUM L5, wired USB barcode scanner.
FAQs
Frequently Asked Questions
Does the L5 read both 1D and 2D barcodes?
Yes. The scanner is capable of reading standard 1D barcodes together with common 2D barcode formats including QR Code, Data Matrix (ECC200), MaxiCode and PDF417.
Can it read damaged or low-quality barcodes?
The scanner uses CMOS imaging technology and supports print contrast down to 25%, helping it read many printed barcodes quickly and accurately.
What interfaces does the scanner support?
The L5 supports USB and RS-232 connectivity, making it suitable for integration with a wide range of POS systems, PCs and industrial equipment.
Is the scanner suitable for retail point-of-sale applications?
Yes. The datasheet specifically identifies commercial POS systems, including supermarkets, as one of its intended applications.
Can it be used in warehouses and logistics operations?
Yes. The scanner is designed for warehousing and logistics environments and is also suitable for industrial and manufacturing management.
What barcode types are supported?
The scanner supports a comprehensive range of barcode symbologies including UPC/EAN, Code 39, Code 93, Code 128, Codabar, Interleaved 2 of 5, MSI, PDF417, MicroPDF417, QR Code, Data Matrix (ECC200), MaxiCode and various postal barcode formats.
Is the scanner durable?
Yes. The scanner features an anti-knock design and is specified to withstand drops equivalent to 2000g onto concrete.
What operating temperatures does it support?
The scanner is designed to operate between 0°C and 50°C and can be stored between -40°C and +70°C.
What is included in the box?
Each package contains:
- 1 × L5 Scanner
- 1 × USB/Interface Cable
- 1 × User Guide
Does the scanner comply with international standards?
Yes. The scanner is supplied with CE, FCC and RoHS certifications.
Does it support image capture?
Yes. The scanner features a 0.35 Megapixel imaging sensor and supports Bitmap, JPEG and TIFF image formats.
What industries is the scanner intended for?
The datasheet recommends the scanner for:
- Retail and supermarkets
- Warehousing and logistics
- Banking and telecommunications
- Transportation
- Postal services
- Industrial and manufacturing environments
