NETUM C750 Wired & Bluetooth 1D & 2D Barcode Scanner
£40.20

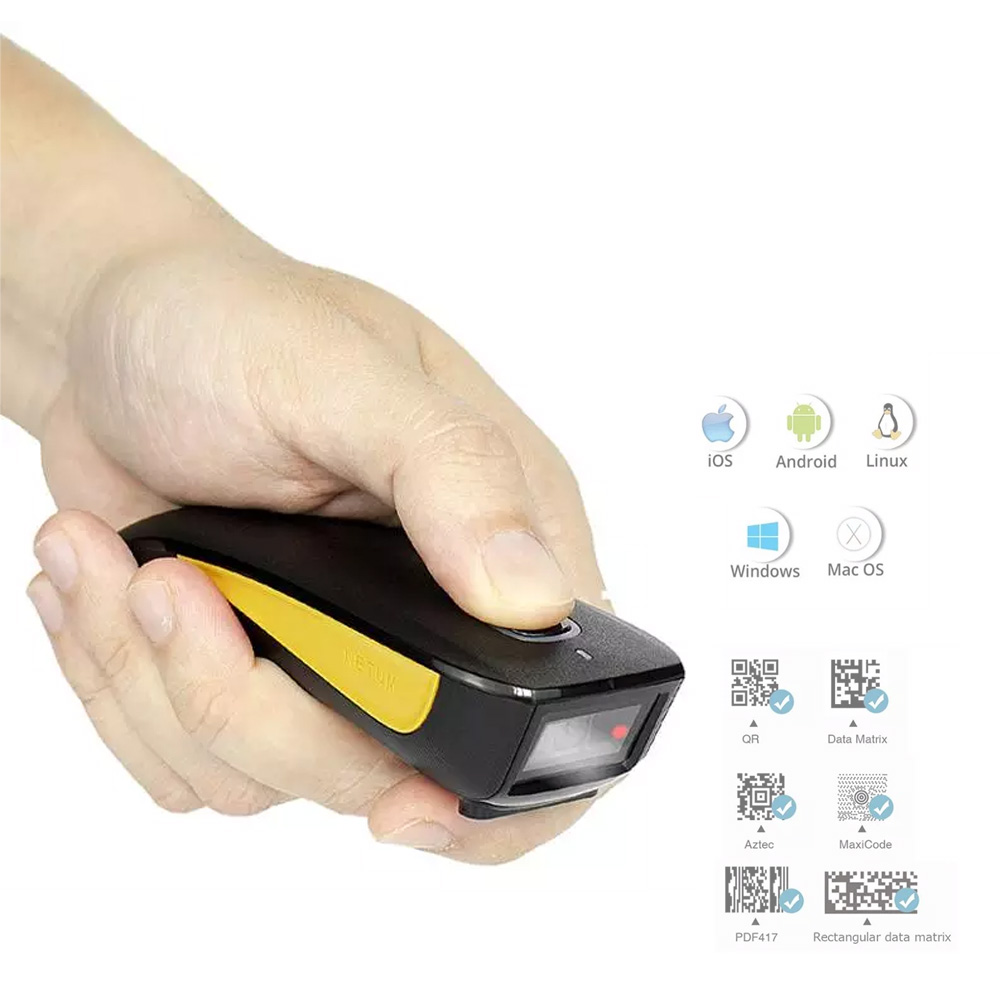

The NETUM C750 is a compact handheld 1D and 2D barcode scanner designed for retail, warehousing, logistics, inventory management and mobile data capture applications. It features a high-performance CMOS global shutter imaging engine capable of reading a wide range of 1D and 2D barcode symbologies, including QR Code, Data Matrix, PDF417, Aztec, MaxiCode and standard retail barcode formats. Wireless Bluetooth, 2.4GHz RF and USB connectivity provide flexible integration with PCs, tablets, smartphones and other business systems.
Three selectable scanning modes (manual trigger, continuous and automatic sensing) allow the scanner to be optimised for different workflows, while wireless communication distances of up to 65 metres (2.4GHz) and 20 metres (Bluetooth) provide excellent operational flexibility. A fast-charging 1200mAh rechargeable battery supports all-day mobile operation.
With its lightweight 72g ABS construction, USB interface, LED, buzzer and vibration feedback, and operating temperature range of -10°C to +50°C, the C750 offers a reliable and practical barcode scanning solution for demanding commercial environments. CE, RoHS and FCC certifications further ensure suitability for worldwide deployment.
Description
NETUM C750 1D & 2D Wireless + Bluetooth Barcode Scanner
The NETUM C750 is a compact 1D and 2D wireless barcode scanner designed for retail, warehousing, stock control, logistics and general inventory management applications.
Its 640 × 480 CMOS Global Shutter imaging engine reads a wide range of 1D and 2D barcode symbologies including EAN, UPC, Code 39, Code 93, Code 128, QR Code, Data Matrix, PDF417, Aztec, MaxiCode and GS1 DataBar formats. With a minimum reading resolution of 4 mil for 1D codes and 5 mil for 2D codes, the scanner provides reliable barcode capture across a variety of printed labels and electronic displays.

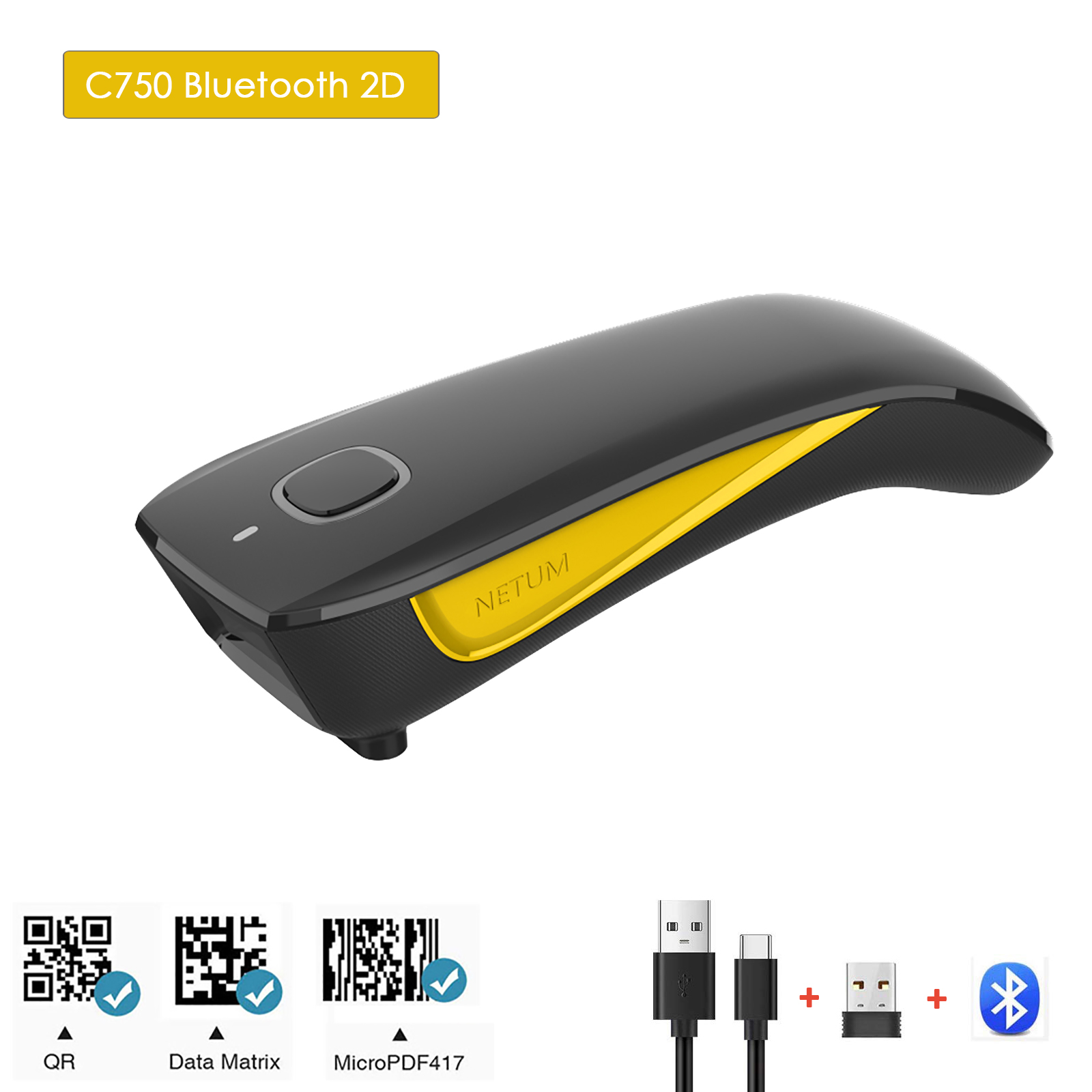

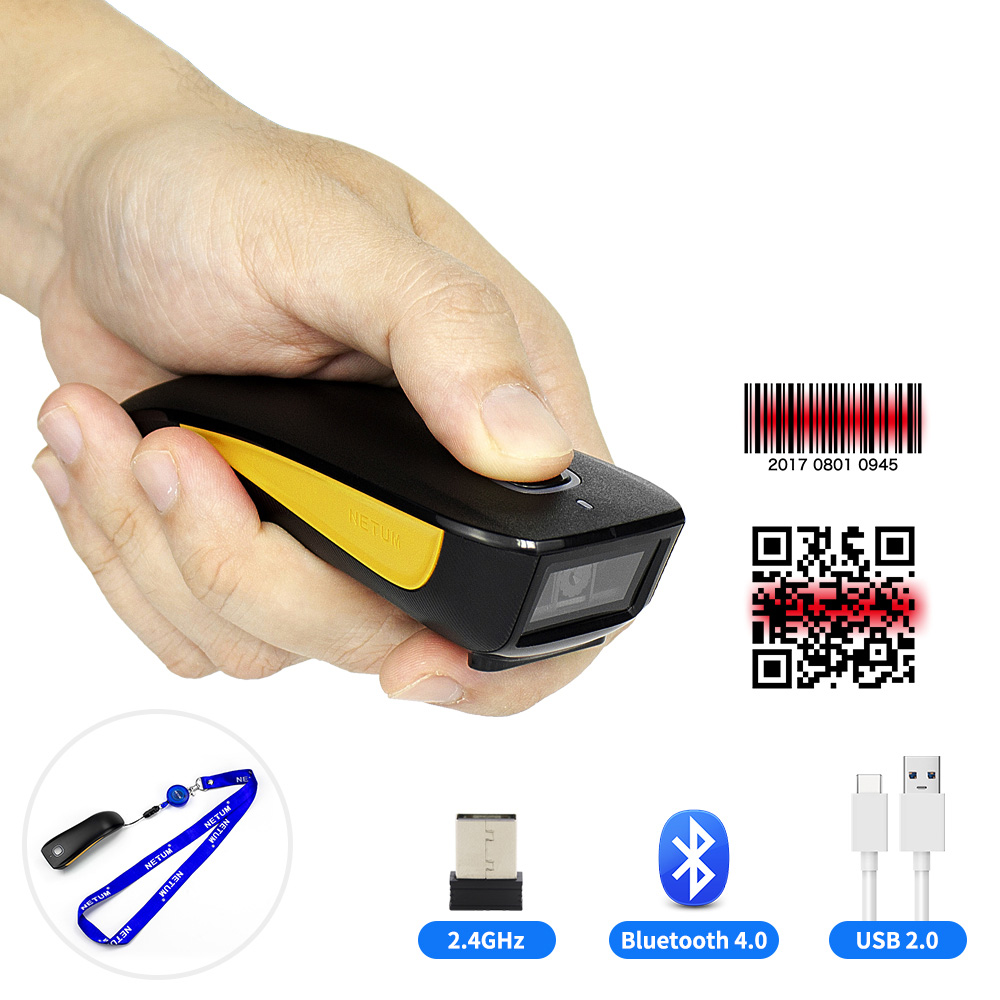

Flexible Connectivity
The C750 offers three connection methods:
- Bluetooth (supports Bluetooth 2.0, 3.0, 4.0 and 4.2 compatible devices)
- 2.4GHz wireless communication with a range of up to 65 metres under clear line-of-sight conditions
- USB wired connection for charging and data communication
Bluetooth connectivity allows scanned barcode data to be transmitted directly into compatible computers, tablets and mobile devices as standard keyboard input, making integration with existing software quick and straightforward.
Fast and Flexible Scanning
The C750 supports multiple operating modes to suit different working environments:
- Trigger scanning
- Continuous scanning
- Auto-sensing scanning
Its wide scan angles and CMOS Global Shutter technology provide fast barcode acquisition while reducing the effects of movement during scanning. The scanner supports typical reading distances of up to 240 mm depending on barcode type and size.
Compact and Practical
Weighing approximately 72g, the C750 is lightweight and comfortable for prolonged daily use. Its durable ABS housing incorporates audible, visual and vibration feedback to confirm successful scans.
The integrated 1200mAh rechargeable battery typically charges within 3–4 hours, providing dependable wireless operation throughout the working day. The scanner automatically enters standby after periods of inactivity to help conserve battery power.
The C750 is well suited to applications including:
- Stocktaking and inventory management
- Retail stock control
- Warehouse operations
- Goods receiving and dispatch
- Order picking and packing
- Asset management
- Logistics and distribution
- Product identification
- Mobile point-of-sale applications
Operating Environment
The scanner is designed to operate in temperatures between -10°C and +50°C, with storage temperatures from -20°C to +70°C. It supports operation in ambient light levels up to 100,000 lux, allowing reliable scanning in a wide range of indoor lighting conditions.
Please note that while the C750 is designed to withstand 1 metre drops under the manufacturer’s stated test conditions, no official IP dust or water resistance rating is specified, so it should not be described as waterproof.
Need Help Choosing?
Tell us what you need to scan, which device the scanner will connect to and where it will be used. Ovlanta can help you identify the most suitable barcode scanning solution for your application.
Specifications
Scanning Performance
Scanner type: Portable handheld barcode scanner
Scanning technology: CMOS Global Shutter imager
Image sensor: 640 × 480 pixels
Barcode capability: 1D and 2D
Illumination: White LED
Aiming light: Red LED
Minimum 1D resolution: 4 mil or greater
Minimum 2D resolution: 5 mil or greater
Minimum print contrast: 20% or greater
Scan angle: 360° rotation, ±55° pitch, ±55° skew
Field of view: 48° diagonal, 40° horizontal, 30° vertical
Connectivity
Connection options:
- Bluetooth
- 2.4GHz wireless
- USB wired
Supported Bluetooth versions: 2.0, 3.0, 4.0 and 4.2
Maximum Bluetooth range: Up to 20m line of sight
Maximum 2.4GHz wireless range: Up to 65m line of sight
USB interface: USB
Cable length: Approximately 1.2m
Battery and Power
Battery capacity: 1200mAh
Approximate charging time: 3–4 hours
Charging input: 5V, 2A
Operating voltage: DC 5V ±5%
Operating current: 125mA
Standby current: 0.6µA
Automatic standby: After approximately 3 minutes of inactivity
Physical Specifications
Dimensions: 125 × 25 × 41mm
Weight: Approximately 72g
Housing material: ABS
Colour: Black and yellow
User feedback: Buzzer, LED indicator and vibration
Drop resistance: Up to 1m free fall
Compliance: CE, RoHS and FCC
Environmental Specifications
Operating temperature: -10°C to +50°C
Storage temperature: -20°C to +70°C
Storage humidity: 5–95% RH (non-condensing)
Ambient light immunity: Up to 100,000 Lux
Scanning Modes
- Manual trigger mode
- Continuous scanning mode
- Auto-sensing mode
Supported 2D Barcodes
QR Code, Data Matrix, PDF417, Aztec, MaxiCode and Chinese Sensible Code.
Supported 1D Barcodes
EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN-128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 DataBar, GS1 Composite Code, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey and Matrix 2 of 5.
Typical Scanning Distances
EAN-13 (13 mil): 50–220mm
Code 39 (5 mil): 40–100mm
QR Code (20 mil): 25–240mm
Data Matrix (10 mil): 50–100mm
PDF417 (6.67 mil): 30–140mm
Actual scanning distance may vary depending on barcode size, print quality, contrast and ambient lighting conditions.
Downloads
Product Downloads
Access the latest product information, setup instructions and configuration documents for the NETUM C750 barcode scanner.
NETUM C750 Product Information
Technical details and product specifications for the NETUM C750 portable barcode scanner.
FAQs
Frequently Asked Questions
Does the C750 read both 1D and 2D barcodes?
Yes. The C750 scans virtually all common 1D and 2D barcode formats, including QR Codes, Data Matrix, PDF417, Aztec, EAN, UPC, Code 128, Code 39, GS1 DataBar and many more, making it suitable for retail, warehousing, logistics and general business applications.
Can the scanner connect via Bluetooth?
Yes. The C750 supports Bluetooth wireless connectivity and is compatible with Bluetooth 2.0, 3.0, 4.0 and 4.2 devices including Windows PCs, Android devices, tablets and many other Bluetooth-enabled hosts.
Can it be used without Bluetooth?
Yes. In addition to Bluetooth, the scanner supports 2.4GHz wireless communication using the supplied USB receiver and can also operate as a wired USB scanner when connected by cable.
What wireless range can I expect?
The scanner offers a wireless range of up to 65 metres using the 2.4GHz wireless receiver and approximately 20 metres when connected via Bluetooth under ideal line-of-sight conditions. Actual operating distance may vary depending on the environment.
Which scanning modes are available?
The C750 supports several operating modes including:
- Manual trigger scanning
- Continuous scanning
- Automatic (presentation) scanning
This allows the scanner to be configured for a wide range of applications.
Does it read damaged or small barcodes?
Yes. The scanner is capable of reading barcodes as small as 4 mil (1D) and 5 mil (2D), providing reliable performance with high-density labels and many lightly damaged or poorly printed barcodes.
What scanning technology does it use?
The C750 uses a Global Shutter CMOS imaging sensor with white LED illumination and a red aiming LED, providing fast and accurate barcode recognition.
How long does the battery take to charge?
The built-in rechargeable battery requires approximately 3 to 4 hours for a full charge.
What battery capacity does it have?
The scanner is fitted with a 1200mAh rechargeable battery, providing cordless operation throughout the working day depending on usage.
How will I know when a barcode has been read successfully?
Successful scans are confirmed using a combination of:
- Audible buzzer
- LED indicator
- Vibration feedback
This makes the scanner suitable for both quiet and noisy working environments.
Is the scanner suitable for warehouse environments?
Yes. Its wireless connectivity, long communication range and support for virtually all standard barcode formats make it ideal for stock control, goods receiving, inventory management and order picking in warehouses and distribution centres.
What operating temperatures does it support?
The scanner is designed to operate in temperatures between -10°C and +50°C, with storage temperatures from -20°C to +70°C.
Is the scanner durable?
Yes. The C750 has been tested to withstand a 1 metre free fall under standard test conditions. An optional protective cover is also available for additional protection.
What interfaces are supported?
The scanner uses a standard USB interface for wired operation and charging, making installation straightforward on most computers and compatible devices.
Does it comply with international safety standards?
Yes. The datasheet states compliance with CE, RoHS and FCC requirements.
