NETUM A5 Wired 1D and 2D Desktop Barcode Scanner
£23.20
The NETUM A5 2D Omni-Directional Barcode Scanner is a high-performance desktop scanner designed for commercial POS systems, warehousing, logistics, libraries, banking, transportation, postal services and industrial manufacturing environments. Its compact design and automatic scanning operation provide reliable hands-free barcode capture for a wide range of business applications.
Featuring a 640 × 480 CMOS imaging engine, the A5 reads both 1D and 2D barcodes, including QR Code, Data Matrix and PDF417 symbols. It supports USB, RS232, HID and Bluetooth interfaces, allowing straightforward integration into existing systems, while compatibility with both paper and screen-displayed barcodes ensures fast, flexible data capture across multiple applications.
Constructed from eco-friendly ABS and rubber, the scanner is designed for dependable day-to-day operation in demanding commercial environments. A scanning range of 10–500 mm, wide operating temperature range of -20°C to +60°C, and support for customised decoding requirements make the A5 a versatile solution for retail, logistics and industrial barcode scanning.
Description
A5 2D Omni-Directional Barcode Scanner
The NETUM A5 1D and 2D Omni-Directional Barcode Scanner is a compact presentation-style scanner designed for fast, hands-free barcode capture across a wide range of commercial and industrial applications. Suitable for retail, warehousing, logistics and manufacturing environments, the A5 combines stable performance with compatibility for both traditional printed barcodes and digital barcodes displayed on electronic screens.
Fast and Reliable Barcode Reading

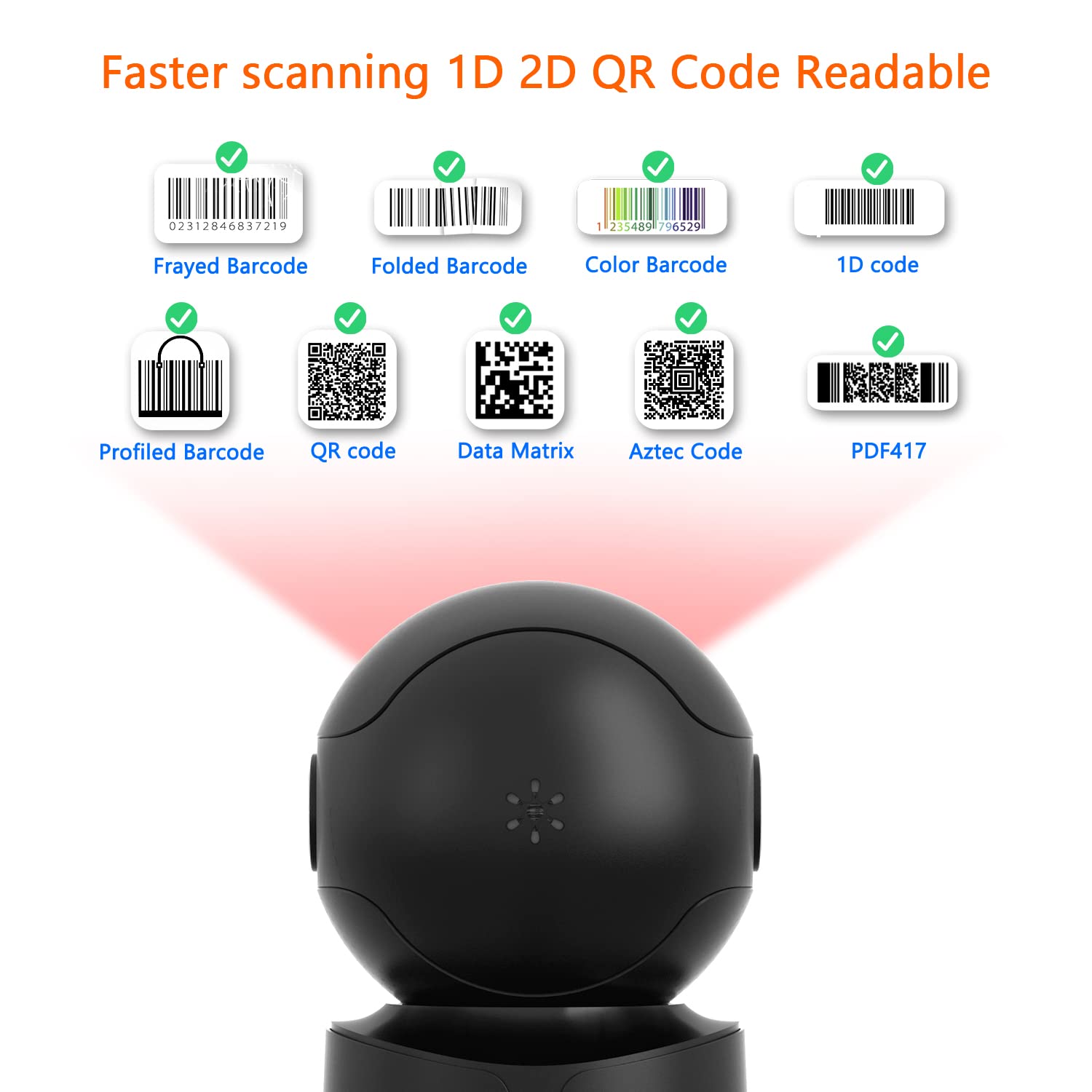

Using a 640 × 480 CMOS imaging engine, the A5 supports both 1D and 2D barcode symbologies, including popular formats such as QR Code, Data Matrix and PDF417. The scanner is designed to provide rapid automatic barcode recognition with no trigger operation required, making it well suited to high-throughput point-of-sale and customer service environments.
The scanner is capable of reading barcodes from approximately 10mm to 500mm, depending on barcode size and quality, with decoding precision of 5 mil for 1D codes and 7 mil for 2D codes. A decode error rate of less than 1 in 8 million helps ensure reliable data capture.
Screen and Paper Barcode Compatibility

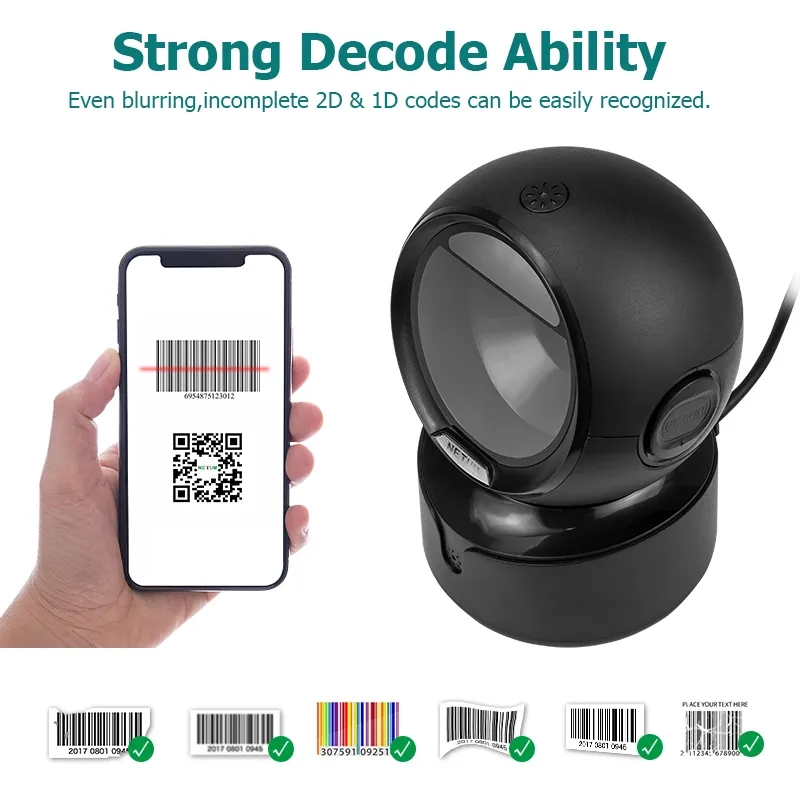

The A5 has been designed to read both printed paper barcodes and barcodes displayed on electronic devices, allowing a single scanner to be used for traditional retail labels as well as digital tickets, payment codes and mobile applications. This flexibility enables one scanner to support multiple scanning requirements within a business.
Flexible Interface Options
The scanner supports multiple communication interfaces including:
- USB
- RS232
- USB HID
- Bluetooth
These interface options allow the A5 to be integrated into a variety of existing systems and host devices.
Easy System Integration
An SDK is available to assist software developers with system integration, enabling customers to import and debug applications more efficiently. The manufacturer also states that customised decoding requirements can be supported for specialist applications.
Robust Construction
Constructed from environmentally friendly ABS and rubber materials, the scanner is designed for continuous commercial use. Operating from a 5V DC power supply with a current requirement of approximately 300mA, it is suitable for long-term desktop installation.
The scanner operates within temperatures from -20°C to +60°C and can be stored between -40°C and +70°C, with operating humidity between 5% and 95%.
Typical Applications
The A5 is suitable for a broad range of commercial applications including:
- Supermarkets and retail POS systems
- Warehousing and logistics
- Libraries
- Banking and telecommunications
- Transportation
- Postal services
- Industrial and manufacturing management
Its omni-directional scanning capability makes it particularly suitable for presentation scanning where speed and ease of use are important.
Package Contents
Each package includes:
- A5 barcode scanner
- User guide
- Connection cable
The scanner measures approximately 105 × 94 × 135.5 mm and weighs approximately 250 g. Standard packaging consists of 1 scanner per box and 45 units per carton.
Need Help Choosing?
If you are unsure whether the A5 is the right barcode scanner for your application, tell us what type of barcodes you need to scan, how the scanner will connect to your equipment and the environment in which it will be used. Ovlanta can help you identify the most suitable barcode scanning solution for your application.
Specifications
A5 2D Omni-Directional Barcode Scanner
Features
- Simple, elegant design suitable for a wide range of commercial environments.
- Independently developed decoding engine supporting customer-specific development and customisation.
- Reads both printed and screen-displayed barcodes for maximum application flexibility.
- Easy-to-use SDK provided to simplify software integration and reduce development time.
- Supports all mainstream 1D and 2D barcode symbologies.
- Special decoding requirements can be customised upon request.
Typical Applications
- Commercial POS systems
- Supermarkets and retail
- Warehousing and logistics
- Libraries
- Banking
- Telecommunications
- Transportation
- Postal services
- Industrial and manufacturing environments
Scanning Performance
Scanner type: Fixed omni-directional barcode scanner
Scanning technology: 640 × 480 CMOS image sensor
Barcode capability: Supports both 1D and 2D barcode symbologies
Supported 2D codes:
- QR Code
- Data Matrix
- PDF417
Scanning operation: Automatic
Minimum 1D resolution: 5 mil
Minimum 2D resolution: 7 mil
Depth of scan field: 10–500 mm
Decode error rate: Less than 1 in 8 million
Minimum print contrast: 20%
Scanning angle:
- Horizontal: 42°
- Vertical: 31.5°
Connectivity
Supported interfaces
- USB
- RS232
- USB HID
- Bluetooth
Electrical Specifications
Operating voltage: DC 5V
Current consumption: ≥300mA
Physical Specifications
Housing material: Eco-friendly ABS with rubber overmould
Dimensions: 105 × 94 × 135.5 mm
Weight: Approximately 250 g
Environmental Specifications
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +70°C
Operating humidity: 5%–95% RH
Storage humidity: 5%–85% RH
Package Contents
- A5 2D Omni-Directional Barcode Scanner
- User Guide
- Interface Cable
Certifications
- FCC
- CE
- RoHS
Downloads
Product Downloads
Access the latest product information, setup instructions and configuration documents for the NETUM A5 Desktop barcode scanner.
NETUM A5 Product Information
Technical details and product specifications for the NETUM A5 desktop barcode scanner.
FAQs
Frequently Asked Questions
Does the A5 scanner read both 1D and 2D barcodes?
Yes. The A5 supports both 1D and 2D barcode symbologies, including QR Code, Data Matrix and PDF417, making it suitable for a wide range of retail, logistics and commercial applications.
Can it scan barcodes displayed on mobile phones and computer screens?
Yes. The scanner is designed to read both printed barcodes and barcodes displayed on electronic screens, allowing a single device to handle multiple scanning applications.
What connection options are available?
The scanner supports USB, RS232, HID and Bluetooth interfaces, allowing it to integrate with a variety of computers, POS systems and other compatible devices.
Does the scanner require the operator to press a trigger?
No. The A5 operates automatically, providing hands-free scanning for fast and efficient barcode reading.
What types of businesses is the A5 suitable for?
The scanner is intended for commercial POS systems, warehousing and logistics, libraries, banks, telecommunications, transportation, postal services, and industrial and manufacturing environments.
What is the scanning range?
The specified depth of scan field is between 10 mm and 500 mm, depending on the barcode type, size and scanning conditions.
How small a barcode can the scanner read?
The A5 supports decoding of 1D barcodes down to 5 mil and 2D barcodes down to 7 mil.
Can the scanner be customised for specific applications?
Yes. The datasheet states that special decoding requirements can be customised to meet customer requirements.
Does the manufacturer provide software development support?
Yes. The scanner is supplied with an SDK designed to simplify software integration and reduce development time for customised applications.
What power supply does the scanner require?
The A5 operates from a 5 V DC power supply and requires a current of at least 300 mA.
What environmental conditions can it operate in?
The scanner is specified for operation between -20°C and +60°C with operating humidity between 5% and 95%. Storage temperatures can range from -40°C to +70°C.
What material is the scanner made from?
The housing is manufactured from eco-friendly ABS and rubber materials for durability in commercial environments.
What is included in the package?
Each package contains one scanner, one user guide and one connection cable.
How large is the scanner?
The scanner measures 105 × 94 × 135.5 (as listed on the datasheet) and weighs approximately 250 g.
Does the scanner meet recognised compliance standards?
Yes. The datasheet displays FCC, CE and RoHS certification marks.
