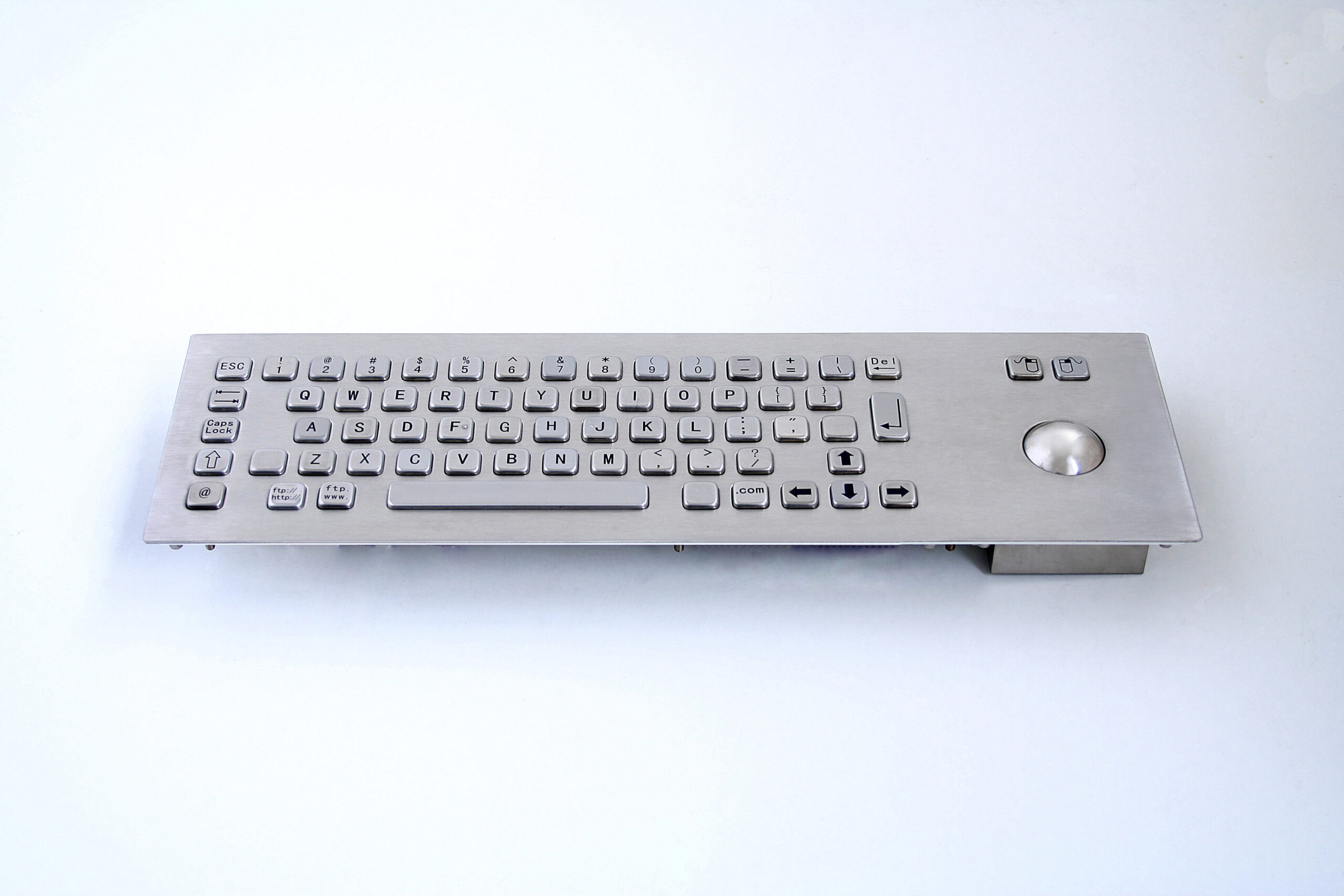

INPUTEL KB010 Stainless Steel 66 Key Panel Mount Keyboard with Trackball

KB010 64 Key Panel Mount Keyboard and Trackball

£153.40

Lead time2-3 weeks

The INPUTEL KB010 is a rugged industrial stainless steel keyboard designed for demanding environments including self-service kiosks, industrial PC systems, factory automation, medical equipment and vending applications. Its sealed IP65 and NEMA 4X construction provides reliable protection against dust, water and vandalism, making it suitable for continuous operation in harsh commercial and industrial settings.

Featuring 64 laser-engraved stainless steel keys with a 38mm integrated trackball, the KB010 offers accurate and dependable data entry. Silicone key switch technology delivers a key life exceeding 5 million operations, while USB and PS/2 interfaces enable straightforward integration with a wide range of industrial computers and control systems.

An aluminium mounting frame, panel-mount design and operating temperature range of -10°C to +60°C ensure long-term durability in challenging environments. Support for multiple language layouts and robust construction make the KB010 a practical choice for industrial, transportation, navigation and factory automation applications requiring reliable operator input.

SKU: KB010 Categories: , Brand:
Mechanical Format Panel Mount
Connectivity USB or PS/2
Power Source 5Vdc
Configuration 64 keys, Trackball

Description

KB010 Stainless Steel Industrial Keyboard with Integrated Trackball

The Inputel KB010 is a robust stainless steel industrial keyboard designed for demanding environments where reliability, durability and resistance to harsh operating conditions are essential. Featuring a full 64-key layout with an integrated 38mm trackball, the keyboard is ideal for industrial control systems, self-service kiosks, factory automation equipment and other applications requiring dependable operator input.

Rugged Stainless Steel Construction

Manufactured using high-quality stainless steel, the KB010 has been engineered for continuous use in public, industrial and commercial environments where conventional keyboards would quickly fail. The vandal-resistant construction provides excellent protection against physical abuse while maintaining a professional appearance.

The keyboard incorporates laser engraved key legends, ensuring the characters remain clearly visible even after years of continuous use. Unlike printed legends that can wear away over time, laser engraving provides exceptional long-term durability.

Designed for Harsh Industrial Environments

The KB010 carries an IP65 environmental protection rating together with NEMA 4X compliance, providing excellent resistance against dust, water ingress and contaminants commonly found in industrial environments.

These protection levels make the keyboard suitable for use in production facilities, food processing equipment, medical systems, outdoor kiosks and other installations where equipment may be exposed to moisture, dust or frequent cleaning procedures.

Integrated Industrial Trackball

An integrated 38mm stainless steel trackball eliminates the need for an external pointing device, allowing complete control of industrial PCs and HMI systems from a single compact operator interface.

The integrated design reduces installation complexity whilst improving reliability by removing additional peripherals and cables that could become damaged during operation.

Reliable Key Switching Technology

The keyboard uses high-quality silicone switching elements that provide smooth tactile feedback whilst delivering a key switch lifetime exceeding five million operations. A typical actuation force of 1N with 2.0mm travel provides comfortable operation without compromising durability.

This combination makes the KB010 well suited to applications requiring frequent data entry throughout the working day.

Simple System Integration

The KB010 operates from a standard +5V DC supply and is available with either USB or PS/2 interfaces, allowing straightforward integration into both modern and legacy industrial computer systems.

Its panel mounting design enables secure installation into operator consoles, machinery control panels, kiosks and equipment enclosures while maintaining the environmental protection offered by the keyboard assembly.

Wide Operating Temperature Range

Designed for demanding industrial installations, the KB010 operates across a temperature range of -10°C to +60°C, with storage temperatures from -20°C to +70°C. This allows reliable operation in manufacturing facilities, warehouses and outdoor protected installations where ambient temperatures may vary considerably.

International Compatibility

The KB010 is available with multiple language layouts and interface options to suit international installations and regional operating requirements. Custom language versions can be supplied on request, making the keyboard suitable for worldwide deployment.

Typical Applications

The rugged construction and industrial design make the KB010 suitable for a wide variety of applications, including:

  • Self-service kiosks
  • Industrial PC systems
  • Medical equipment
  • Food processing machinery
  • Gaming machines
  • Vending machines
  • Navigation systems
  • Aviation equipment
  • CNC machinery
  • Factory automation equipment
  • Industrial control panels
  • Operator terminals

Key Features

  • Rugged stainless steel construction
  • IP65 and NEMA 4X environmental protection
  • 64-key industrial layout
  • Integrated 38mm trackball
  • Laser engraved key legends
  • Silicone key switching technology
  • Greater than 5 million key operations
  • USB or PS/2 interface options
  • Panel mount installation
  • Operating temperature from -10°C to +60°C
  • Multiple language versions available
  • Designed for industrial, medical, kiosk and factory automation applications

Specifications

Specifications

Model Number: KB010

Protection level: IP65, NEMA 4X

Mounting type: Panel mount

Panel dimensions: 400 × 124mm

Number of keys: 64 high-quality stainless steel keys

Trackball diameter: 38mm

Mounting frame: Aluminium alloy

Weight: Approximately 1.80kg

Housing characteristics: Dustproof, waterproof and vandal-resistant

Electrical Specifications

Interface options: PS/2, USB

Supply voltage: +5V DC ±5%

Keyswitch Performance

Keyswitch technology: Silicone switching element

Keyswitch lifetime: More than 5 million operations

Actuation force: 1N

Key travel: 2.0mm

Key legends: Laser engraved for maximum durability

Environmental Specifications

Operating temperature: -10°C to +60°C

Storage temperature: -20°C to +70°C

Protection rating: IP65 / NEMA 4X

Mechanical Features

Construction: Stainless steel industrial keyboard

Resistance features:

  • Dustproof
  • Waterproof
  • Vandal resistant

Available language layouts: Available on request

Available interfaces: PS/2 and USB

Typical Applications

  • Self-service kiosks
  • Industrial PC systems
  • Medical equipment
  • Food processing equipment
  • Gaming machines
  • Vending machines
  • Navigation systems
  • Aviation equipment
  • CNC machinery
  • Factory automation equipment

Compliance

Ingress protection: IP65

Environmental compliance: RoHS

EMC compliance: FCC

European conformity: CE

Product Summary

The KB010 is a rugged industrial stainless steel keyboard designed for harsh operating environments. Featuring 64 laser-engraved stainless steel keys, an integrated 38mm trackball, IP65/NEMA 4X environmental protection and vandal-resistant construction, it is suitable for industrial control systems, kiosks, CNC machinery, medical equipment and other demanding applications. The keyboard is available with USB or PS/2 interfaces and supports multiple language layouts upon request.

Downloads

Product Downloads

Access the latest product information, setup instructions and configuration documents for the Inputel KB010 64 Key Stainless Steel Panel Mount with Trackball.

Inputel KB010 Product Information

Technical details and product specifications for the Inputel KB010 64 key Stainless Steel Panel Mount with Trackball.

Download the product information

Additional information

Language

UK, French, German, Spanish, Italian, Nordic
Connection Type

PS2, USB

FAQs

Frequently Asked Questions

Is the KB010 suitable for harsh industrial environments?

Yes. The KB010 is designed for industrial applications and features an IP65 and NEMA 4X protection rating, making it resistant to dust and water ingress. It is also designed to resist vandalism.

Is the keyboard waterproof?

Yes. The KB010 has an IP65 protection rating, providing protection against dust and water, making it suitable for demanding industrial environments.

Can the KB010 be panel mounted?

Yes. The keyboard is designed specifically for panel mounting, making it ideal for kiosks, machinery and industrial control systems.

How many keys does the keyboard have?

The KB010 features 64 high-quality stainless steel keys, providing a durable and reliable interface for industrial applications.

Does the keyboard include a pointing device?

Yes. The KB010 incorporates an integrated 38 mm trackball, allowing full cursor control without requiring a separate mouse.

What interfaces are available?

The keyboard is available with either USB or PS/2 interfaces, allowing compatibility with a wide range of industrial computers and embedded systems.

What operating systems does it support?

The datasheet specifies USB and PS/2 interfaces but does not list supported operating systems. Compatibility will depend on the operating system’s support for standard USB or PS/2 keyboard devices.

Can different keyboard languages be supplied?

Yes. The KB010 is available with different language layouts and interfaces upon request.

How durable are the keys?

The silicone key switches are rated for more than 5 million operations, making the keyboard suitable for continuous industrial use.

Are the key legends likely to wear off?

No. The key legends are laser engraved to provide excellent long-term durability in demanding environments.

What temperature range can the keyboard operate in?

The KB010 is designed to operate between -10°C and +60°C and can be stored between -20°C and +70°C.

What voltage does the keyboard require?

The keyboard operates from a +5V DC supply with a tolerance of ±5%.

What are the overall dimensions?

The front panel measures 400 mm × 124 mm.

What applications is the KB010 designed for?

The keyboard is suitable for a wide variety of industrial applications, including:

  • Self-service kiosks
  • Industrial PC systems
  • Medical and food processing equipment
  • Gaming and vending machines
  • Navigation and aviation systems
  • CNC machines and factory automation equipment

How long is the expected product lifespan?

The datasheet specifies an expected service life of more than five years under normal operating conditions.

Need help choosing the right product?

Tell us how and where the product will be used, and we’ll help you identify a suitable solution for your application.

Get Product Advice
