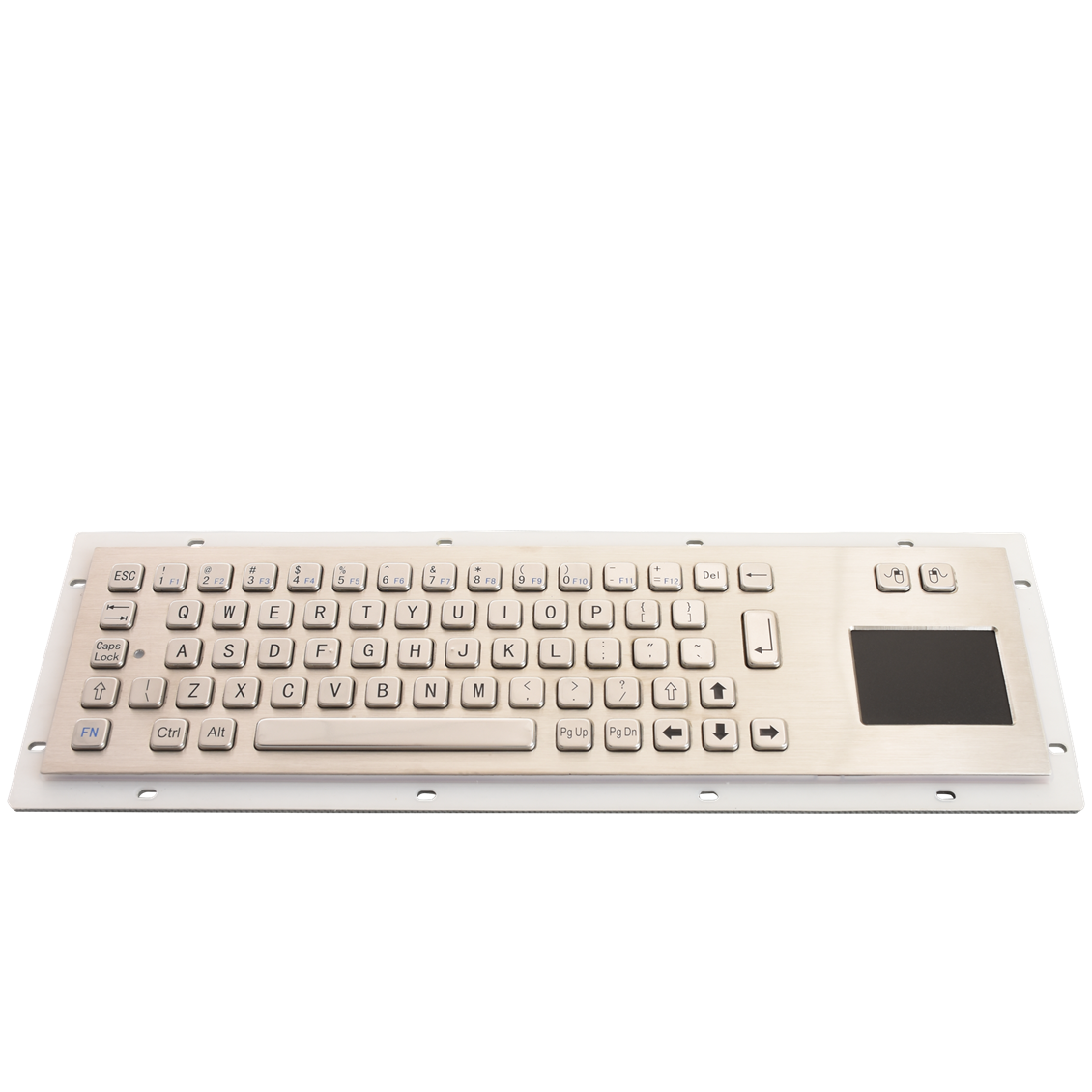

Inputel KB001T 64 key Stainless Steel Keyboard with Touchpad

KB001T 64 Key Rear Mount Keyboard and Touchpad

£153.40

Lead time2-3 weeks

INPUTEL KB001T Industrial Stainless Steel Keyboard with Touchpad

The INPUTEL KB001T is a rugged 64-key industrial stainless steel keyboard featuring an integrated touchpad, designed for reliable operation in harsh commercial and industrial environments. With an IP65 and NEMA 4X sealed construction, it provides excellent resistance against dust, water, vandalism and contaminants, making it ideal for continuous use in demanding applications.

Designed for rear panel mounting, the KB001T incorporates durable laser-engraved stainless steel keys with silicone switching technology, delivering a key life of over 5 million operations. Supporting both USB and PS/2 interfaces, it integrates easily into industrial control systems, kiosks and embedded computing platforms.

Suitable for self-service kiosks, industrial PCs, medical and food processing equipment, gaming and vending machines, navigation systems, aviation applications and CNC machinery, the KB001T offers dependable performance in environments where durability and reliability are essential.

SKU: KB001T Categories: , Brand:
Mechanical Format Rear Mount
Connectivity USB or PS/2
Power Source 5Vdc
Configuration 64 keys, Touchpad

Description

KB001T Stainless Steel Industrial Keyboard with Integrated Touchpad

The Inputel KB001T is a premium industrial stainless steel keyboard with an integrated touchpad, designed for use in demanding environments where reliability, durability and long-term performance are essential. Manufactured from high-quality stainless steel and engineered to withstand harsh industrial conditions, the keyboard offers exceptional resistance to dust, water and vandalism while providing a familiar 64-key layout for efficient operator input.

Built for Harsh Industrial Environments

Designed specifically for industrial, commercial and public access applications, the KB001T features a rugged stainless steel construction with an IP65 and NEMA 4X protection rating. This ensures excellent resistance against dust ingress, water exposure and contaminants commonly found in manufacturing plants, food processing facilities, medical environments and outdoor installations. The vandal-resistant design makes it particularly suitable for applications where conventional keyboards would be vulnerable to damage or misuse.

Integrated Touchpad for Complete Operator Control

The integrated industrial touchpad provides accurate cursor control without requiring a separate pointing device. By combining keyboard and pointing functionality into a single compact unit, the KB001T reduces installation space, simplifies system integration and improves overall reliability by eliminating the need for external peripherals. This makes it an ideal solution for industrial PCs, kiosks, operator terminals and machinery control systems.

Durable Key Switching Technology

The keyboard utilises high-quality silicone switching elements that deliver reliable tactile feedback and long operational life. With a key switch lifetime exceeding 5 million operations, the KB001T is designed for continuous daily use in demanding applications. A typical actuation force of 1N combined with 2.0mm key travel provides a responsive typing experience while maintaining exceptional durability.

Long-Lasting Laser Engraved Keys

To maximise service life, each key features permanently laser engraved legends that remain clear and legible even after years of intensive operation. Unlike printed keycaps that may wear over time, laser engraving provides superior resistance to abrasion, chemicals and frequent cleaning procedures, ensuring reliable operation throughout the keyboard’s service life.

Simple Integration into Industrial Systems

The KB001T operates from a standard +5V DC supply and is available with both USB and PS/2 interfaces, allowing straightforward integration into both modern and legacy industrial computer systems. Designed for rear panel mounting, the keyboard can be securely installed into equipment enclosures, operator consoles and kiosks while maintaining its environmental sealing. An aluminium alloy mounting frame further enhances mechanical strength and installation stability.

Reliable Operation Across Wide Temperature Ranges

Designed for continuous operation in demanding industrial environments, the KB001T operates over a temperature range of -10°C to +60°C, with storage temperatures from -20°C to +70°C. This makes it suitable for factories, warehouses, outdoor protected installations and other locations where environmental conditions may fluctuate significantly.

International Compatibility

The KB001T is available with multiple language layouts and interface options to support worldwide deployment. Custom language versions are available upon request, enabling seamless integration into international equipment and regional applications.

Typical Applications

The rugged construction and integrated touchpad make the KB001T ideal for a wide range of industrial and commercial applications, including:

  • Self-service kiosks
  • Industrial PC systems
  • Medical equipment
  • Food processing machinery
  • Gaming machines
  • Vending machines
  • Navigation systems
  • Aviation equipment
  • CNC machinery
  • Factory automation equipment
  • Industrial operator terminals and control panels

Key Features

  • Rugged stainless steel construction
  • 64-key industrial keyboard layout
  • Integrated industrial touchpad
  • IP65 and NEMA 4X environmental protection
  • Dustproof, waterproof and vandal-resistant design
  • Laser engraved key legends
  • Silicone key switching technology
  • Greater than 5 million key operations
  • USB or PS/2 interface options
  • Rear panel mounting
  • Aluminium alloy mounting frame
  • Operating temperature from -10°C to +60°C
  • Multiple language versions available
  • Designed for industrial, medical, kiosk and factory automation applications

Specifications

Specifications

Model Number

KB001T

Protection Level

IP65, NEMA 4X

Mounting Type

Rear mounting

Panel Dimensions

392 × 110mm

Number of Keys

64 high-quality stainless steel keys

Pointing Device

Integrated touchpad

Mounting Frame

Aluminium alloy

Weight

Approximately 1.60kg

Housing Characteristics

Dustproof, waterproof and vandal-resistant stainless steel construction.

Electrical Specifications

Interface Options: PS/2, USB
Supply Voltage: +5V DC ±5%

Keyswitch Performance

Keyswitch Technology: Silicone switching element
Keyswitch Lifetime: More than 5 million operations
Actuation Force: 1N
Key Travel: 2.0mm
Key Legends: Laser-engraved for excellent durability

Environmental Specifications

Operating Temperature: -10°C to +60°C
Storage Temperature: -20°C to +70°C
Protection Rating: IP65 / NEMA 4X

Mechanical Features

Construction: Rugged stainless steel industrial keyboard with integrated touchpad.

Resistance Features:

  • Dustproof
  • Waterproof
  • Vandal resistant

Available Language Layouts: Available on request

Available Interfaces: PS/2 and USB

Typical Applications

  • Self-service kiosks
  • Industrial PC systems
  • Medical and food industry equipment
  • Gaming machines
  • Vending machines
  • Navigation systems
  • Aviation equipment
  • CNC machinery
  • Factory automation equipment

Compliance

Ingress Protection: IP65
Environmental Compliance: RoHS
EMC Compliance: FCC
European Conformity: CE (logos shown in the datasheet)

Product Summary

The KB001T is a rugged industrial stainless steel keyboard engineered for demanding environments where durability and reliability are essential. It features 64 laser-engraved stainless steel keys, an integrated touchpad, IP65/NEMA 4X environmental protection, and a vandal-resistant construction, making it ideal for industrial control systems, self-service kiosks, medical and food processing equipment, CNC machinery, factory automation, navigation systems, aviation equipment, gaming machines, and vending applications. Available with USB or PS/2 interfaces, the KB001T also supports multiple language layouts to suit international installations.

Downloads

Product Downloads

Access the latest product information, setup instructions and configuration documents for the Inputel KB001T 64 Key Stainless Steel Rear Mount with Touchpad.

Inputel KB001T Product Information

Technical details and product specifications for the Inputel KB001T 64 key Stainless Steel Rear Mount with Touchpad.

Download the product information

Additional information

Language

UK, French, German, Spanish, Italian, Nordic
Connection Type

PS2, USB

FAQs

Frequently Asked Questions

Is the KB001T suitable for harsh industrial environments?

Yes. The KB001T is designed for demanding industrial applications and features IP65 and NEMA 4X protection, making it resistant to dust, water ingress and vandalism.

Is the keyboard waterproof?

Yes. The KB001T has an IP65 protection rating, providing excellent protection against dust and water, making it suitable for industrial environments where reliability is essential.

Can the KB001T be panel mounted?

Yes. The keyboard is designed for rear panel mounting, making it ideal for industrial equipment, kiosks and machine control panels.

How many keys does the keyboard have?

The KB001T features 64 high-quality stainless steel keys, providing a durable and reliable interface for industrial applications.

Does the keyboard include a pointing device?

Yes. The KB001T incorporates an integrated touchpad, eliminating the need for a separate mouse while providing convenient cursor control in industrial environments.

What interfaces are available?

The keyboard is available with either USB or PS/2 interfaces, ensuring compatibility with a wide range of industrial PCs and embedded systems.

What operating systems does it support?

The datasheet specifies USB and PS/2 interfaces but does not list supported operating systems. Compatibility depends on the operating system’s support for standard USB or PS/2 keyboard devices.

Can different keyboard languages be supplied?

Yes. The KB001T is available with different language layouts and interface options upon request.

How durable are the keys?

The silicone switching elements are rated for more than 5 million key operations, providing excellent long-term reliability in continuous industrial use.

Are the key legends likely to wear off?

No. The key legends are laser engraved, providing excellent resistance to wear and ensuring long-lasting readability in demanding environments.

What temperature range can the keyboard operate in?

The KB001T operates within a temperature range of -10°C to +60°C and can be stored between -20°C and +70°C.

What voltage does the keyboard require?

The keyboard operates from a +5V DC supply with a tolerance of ±5%.

What are the overall dimensions?

The keyboard has overall panel dimensions of 392 mm × 110 mm, making it suitable for compact industrial control panels and equipment.

What applications is the KB001T designed for?

The KB001T is suitable for a wide range of industrial applications, including:

  • Self-service kiosks
  • Industrial PC systems
  • Medical and food processing equipment
  • Gaming and vending machines
  • Navigation and aviation systems
  • CNC machines and other factory automation equipment

How long is the expected product lifespan?

The KB001T has an expected service life of more than five years under normal operating conditions.
