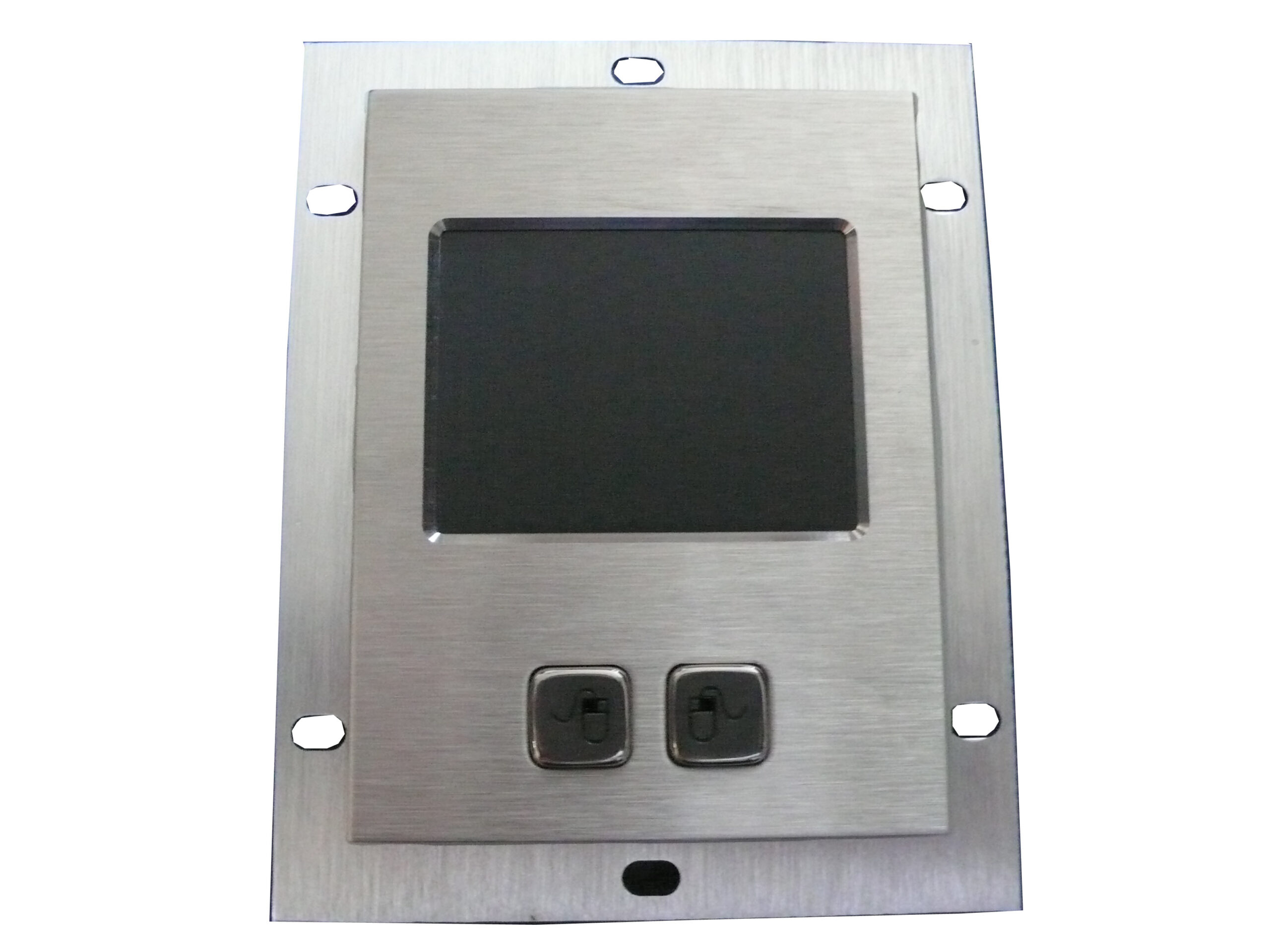

KC300 Stainless Steel, Rear Mount Touchpad
£73.35
The INPUTEL KC300 is a rugged industrial metal touchpad engineered for reliable cursor control in demanding commercial and industrial environments. Its sealed stainless steel construction provides IP65 and NEMA 4X protection against dust, water ingress and vandalism, making it ideal for applications requiring long-term durability and dependable operation.
Designed for rear panel mounting, the KC300 features a robust aluminium mounting frame and durable laser-engraved legends. Silicone switching elements provide tactile left and right mouse buttons with a service life exceeding 5 million operations, while USB and PS/2 interfaces ensure easy integration with industrial PCs, kiosks and embedded control systems.
Suitable for self-service kiosks, factory automation equipment, CNC machinery, medical and food processing systems, gaming machines, vending equipment and navigation applications, the KC300 delivers reliable pointing control where conventional consumer input devices are unsuitable.
Description
KC300 Industrial Metal Touchpad
The Inputel KC300 Industrial Metal Touchpad is a rugged, vandal-resistant pointing device designed for demanding industrial, commercial and public access applications where durability and reliable operation are essential. Manufactured with a robust metal front panel and engineered for rear panel mounting, the KC300 delivers dependable cursor control in environments where conventional consumer touchpads would be unsuitable. It is an ideal solution for industrial control systems, self-service kiosks, factory automation equipment, medical devices, food processing machinery and other applications requiring a sealed, long-life human-machine interface.
Rugged Industrial Construction
Designed for continuous operation in harsh environments, the KC300 features a durable metal construction with an aluminium alloy mounting frame that provides excellent resistance to impact, vandalism and heavy daily use. The rear-mount design allows the touchpad to be securely integrated into control panels, operator consoles and kiosk enclosures, creating a professional flush-mounted appearance while protecting the electronics behind the panel.
Sealed Against Dust and Water
The KC300 is certified to IP65 and NEMA 4X environmental protection standards, providing outstanding resistance against dust, water ingress and contaminants. These protection levels make it suitable for applications exposed to wash-down procedures, airborne particles, moisture and demanding industrial operating conditions where equipment reliability is critical.
Reliable Touchpad Performance
The industrial touchpad provides accurate and responsive cursor control without requiring moving mechanical components. Combined with dedicated left and right mouse buttons, it offers intuitive operation for industrial PCs, HMI terminals and embedded control systems while reducing maintenance requirements compared to conventional pointing devices.
Long Operating Life
Engineered for long-term reliability, the KC300 utilises high-quality silicone switching elements for the integrated mouse buttons, delivering a switch life exceeding five million operations. Laser engraved legends ensure button markings remain clearly visible throughout the product’s operational lifetime, even in high-use environments where printed markings would quickly wear away.
Easy System Integration
The KC300 operates from a standard +5V DC supply and is available with both USB and PS/2 interfaces, allowing straightforward integration into both modern and legacy industrial computer systems. Its compact dimensions of 110 mm × 83 mm make it suitable for installations where panel space is limited while still providing comfortable operation.
Built for Industrial Environments
Designed for demanding applications, the KC300 operates reliably across a temperature range of -10°C to +60°C, with storage temperatures from -20°C to +70°C. This wide operating range allows dependable performance in manufacturing facilities, warehouses, outdoor protected installations and other challenging environments where ambient temperatures may fluctuate significantly.
Typical Applications
The KC300 Industrial Metal Touchpad is suitable for a wide variety of professional applications, including:
- Self-service kiosks
- Industrial PC systems
- Medical equipment
- Food processing machinery
- Gaming machines
- Vending machines
- Navigation systems
- Aviation equipment
- CNC machinery
- Factory automation equipment
Key Features
- Rugged metal construction
- IP65 and NEMA 4X environmental protection
- Rear panel mounting
- Integrated industrial touchpad with dedicated mouse buttons
- USB and PS/2 interface options
- Silicone switch technology
- Greater than 5 million switch operations
- Laser engraved legends for long-term durability
- Compact 110 × 83 mm footprint
- +5V DC operation
- Operating temperature: -10°C to +60°C
- Capacitive Touch
- Ideal for industrial, medical, kiosk and factory automation applications
Specifications
Specifications
Model Number: KC300 Metal Touchpad
Protection level: IP65, NEMA 4X
Mounting type: Rear mount
Panel dimensions: 110 × 83mm
Touchpad type: Industrial metal touchpad with left and right mouse buttons
Mounting frame: Aluminium alloy
Weight: Approximately 0.75kg
Housing characteristics: Dustproof, waterproof and vandal-resistant
Electrical Specifications
Interface options: PS/2, USB
Supply voltage: +5V DC ±5%
Touchpad Performance
Switch technology: Silicone switching element
Switch lifetime: More than 5 million operations
Actuation force: 1N
Button legends: Laser engraved for maximum durability
Optional versions: Mechanical or optical pointing device available
Environmental Specifications
Operating temperature: -10°C to +60°C
Storage temperature: -20°C to +70°C
Protection rating: IP65 / NEMA 4X
Mechanical Features
Construction: Rugged industrial metal touchpad with aluminium mounting frame
Resistance features:
- Dustproof
- Waterproof
- Vandal resistant
Available interfaces: PS/2 and USB
Typical Applications
- Self-service kiosks
- Industrial PC systems
- Medical and food processing equipment
- Gaming machines
- Vending machines
- Navigation systems
- Aviation equipment
- CNC machinery
- Factory automation equipment
Compliance
Ingress protection: IP65
Environmental compliance: RoHS
EMC compliance: FCC
European conformity: CE
Product Summary
The KC300 Metal Touchpad is a rugged industrial pointing device engineered for reliable operation in harsh environments. It features an IP65/NEMA 4X sealed front panel, a durable metal construction with aluminium mounting frame, laser-engraved mouse buttons, and a silicone switching mechanism rated for more than five million operations. Supporting both USB and PS/2 interfaces, the KC300 is ideal for industrial control systems, self-service kiosks, medical equipment, food processing applications, CNC machinery, factory automation systems, and other demanding environments where dust, water and vandal resistance are essential.
Downloads
Product Downloads
Access the latest product information, setup instructions and configuration documents for the Inputel KC300 Stainless Steel Rear mount Touchpad.
Inputel KC300 Product Information
Technical details and product specifications for the Inputel KC300 Stainless Steel Rear mount Touchpad.
Additional information
| Connection Type | PS2, USB |
|---|
FAQs
Frequently Asked Questions
Is the KC300 suitable for harsh industrial environments?
Yes. The Inputel KC300 is designed for industrial applications and features IP65 and NEMA 4X protection, making it resistant to dust, water and vandalism.
Is the touchpad waterproof?
Yes. The KC300 is rated to IP65, providing excellent protection against dust and water ingress, making it suitable for use in demanding industrial and outdoor environments.
Can the KC300 be panel mounted?
Yes. The KC300 is designed for rear mounting, allowing it to be securely installed into kiosks, industrial equipment and control panels.
What interfaces are available?
The KC300 is available with both USB and PS/2 interfaces, providing compatibility with a wide range of industrial PCs and embedded systems.
What operating systems does it support?
The datasheet specifies USB and PS/2 connectivity but does not list supported operating systems. Compatibility depends on the operating system supporting standard USB or PS/2 pointing devices.
How durable is the touchpad?
The KC300 uses silicone switching elements with a key switch lifetime of more than 5 million operations, making it suitable for continuous industrial use.
Will the legends wear off over time?
No. The button legends are laser engraved to provide excellent long-term durability, even in demanding industrial environments.
What temperature range can the KC300 operate in?
The KC300 is designed to operate between -10°C and +60°C and can be stored between -20°C and +70°C.
What supply voltage is required?
The KC300 operates from a +5V DC supply (±5%).
What are the overall dimensions?
The KC300 has overall dimensions of 110 mm × 83 mm, making it compact and easy to integrate into industrial equipment and operator interfaces.
What applications is the KC300 designed for?
The KC300 is suitable for a wide range of industrial applications, including:
- Self-service kiosks
- Industrial PC systems
- Medical and food processing equipment
- Gaming and vending machines
- Navigation and aviation systems
- CNC machines and factory automation equipment
How long is the expected product lifespan?
The KC300 has an expected service life of more than five years under normal operating conditions.
